RJ45 connector 100Mbps with filter and gold plating modular jack for PCB applications

Ποσότητα παραγγελίας min :	1 Τεμάχιο	Τιμή :	Please contact us to get the latest price.
Συσκευασία λεπτομέρειες :	Δίσκος στο χαρτοκιβώτιο	Χρόνος παράδοσης :	10 μέρες
Όροι πληρωμής :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Δυνατότητα προσφοράς :	100.000 τμχ/ημέρα

Τόπος καταγωγής:	Dongguan της Κίνας	Μάρκα:	DGKYD
Πιστοποίηση:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Αριθμό μοντέλου:	DGKYD211B003GWA4DZ
Έγγραφο:	DGKYD211B003GWA4DZ.pdf

Λεπτομερής ενημέρωση
Αριθμός επαφών που φορτώνονται:	8	Όνομα προϊόντος:	γυναικείο γρύλο rj45
Λιμάνι:	Μονό λιμάνι	Αριθμός θέσεων:	8
RJ45 τερματικό PCB:	Χαλκός φωσφόρων, ουρά-κασσίτερος πέρα από Nickl	Κοχύλι RJ45 μετάλλων:	Κράμα χαλκού, κασσίτερος και νικέλινος
Εκτέλεση:	γάτα5	Επιμετάλλωση:	Glod επιμετάλλωση 6U/15U/30U/50U
Εφαρμογή:	PCB	Χρώμα LED:	ΟΧΙ
Υλικό στέγασης:	Ο ΜΑΎΡΟΣ PBT	Θερμοκρασία λειτουργίας:	-40°C~+85°C
Θερμοκρασία αποθήκευσης:	-40°C~+85°C

Περιγραφή προϊόντων

RJ45 Connector 100Mbps Filter Socket Crystal Head Interface Female Socket DGKYD211B003GWA4DZ

Product Overview

RJ45 connector 100Mbps filter socket crystal head interface female socket DGKYD211B003GWA4DZ

Part Number: DGKYD211B003GWA4DZ

Product Documentation: DGKYD211B003GWA4DZ.pdf

Technical Parameters

Part Number	DGKYD211B003GWA4DZ	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Port	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

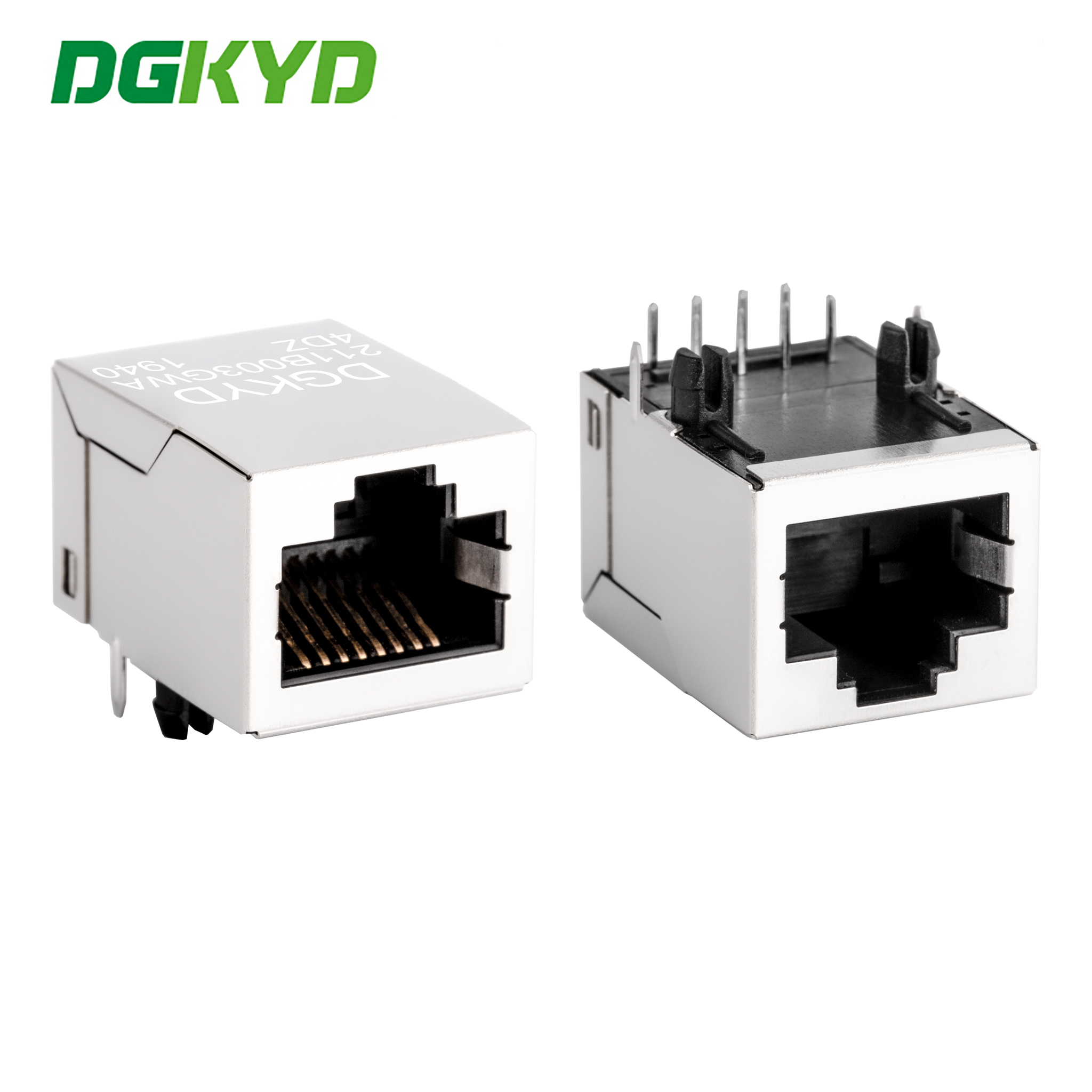

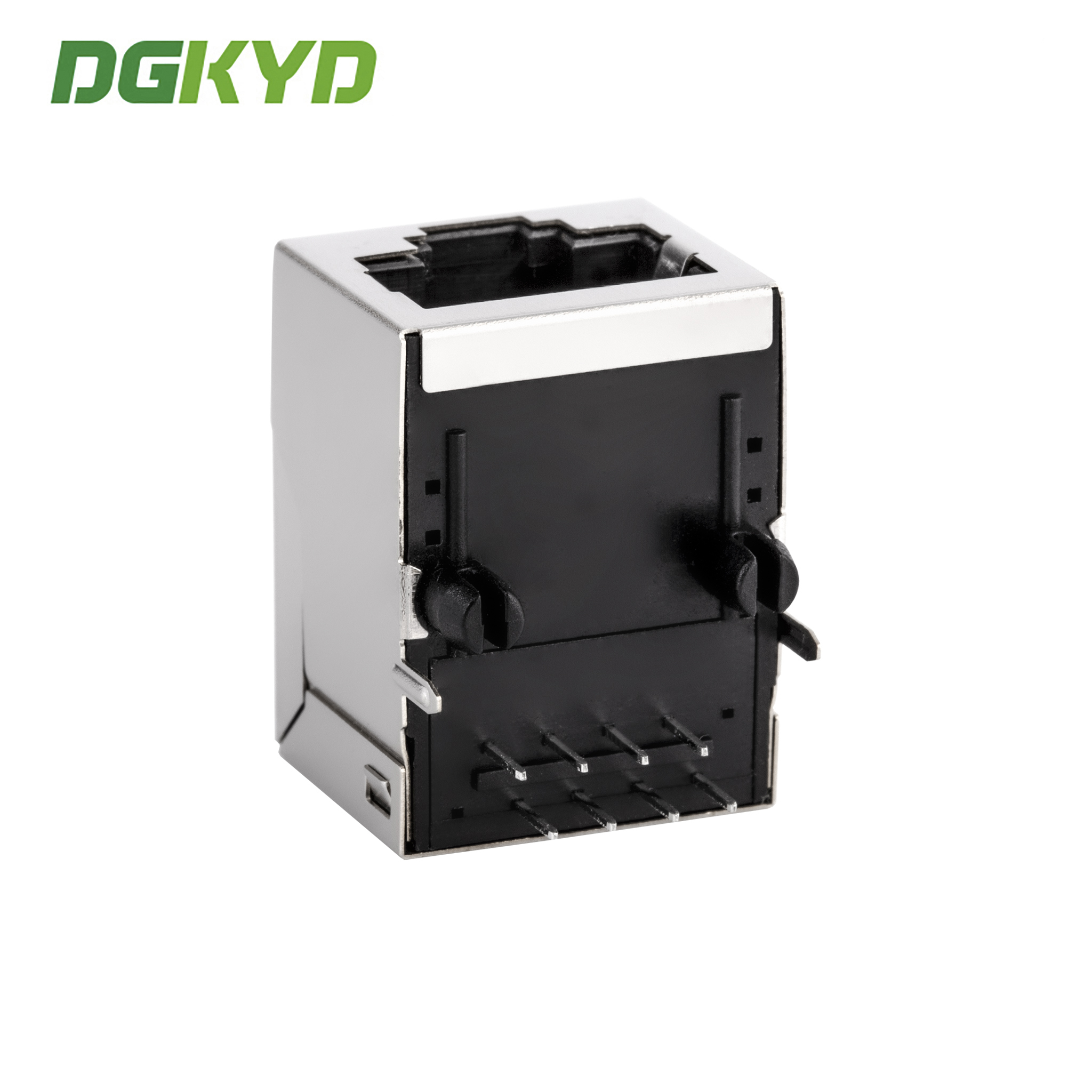

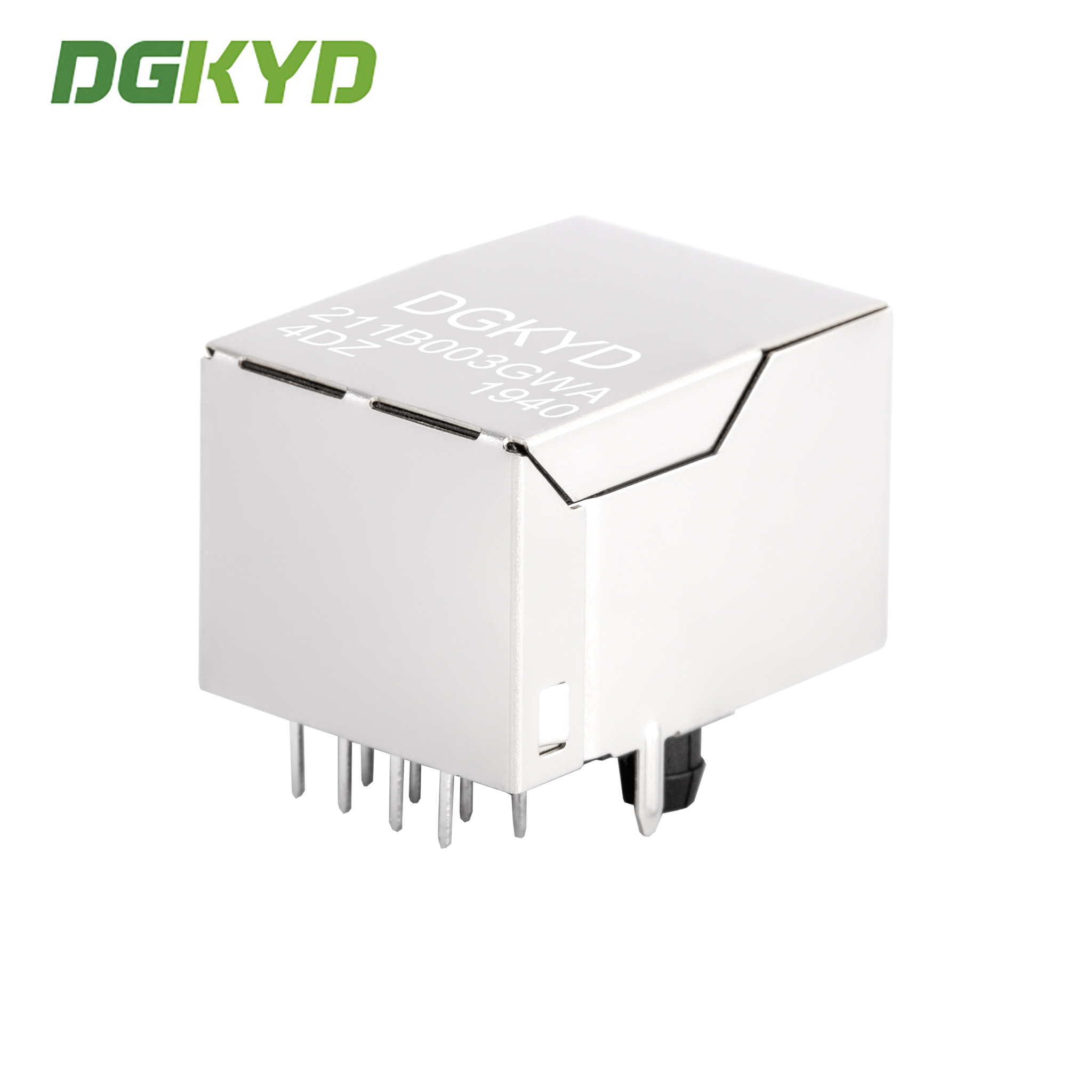

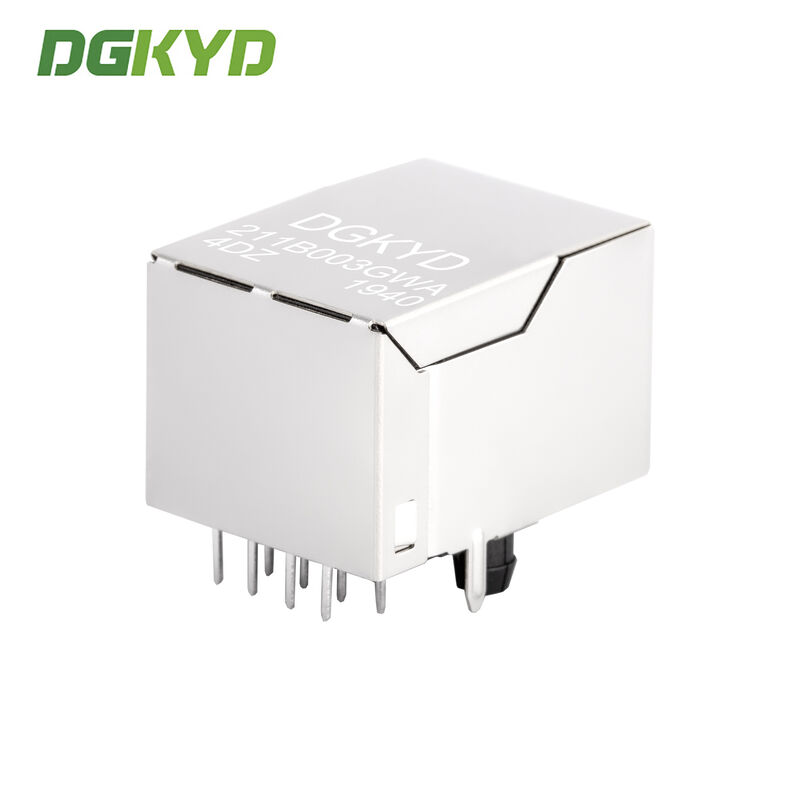

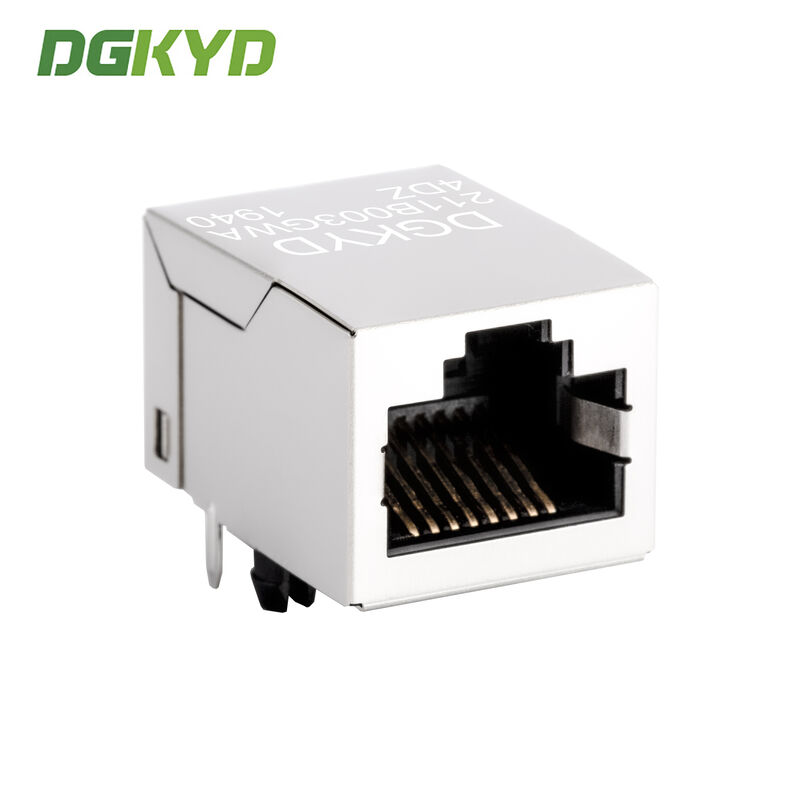

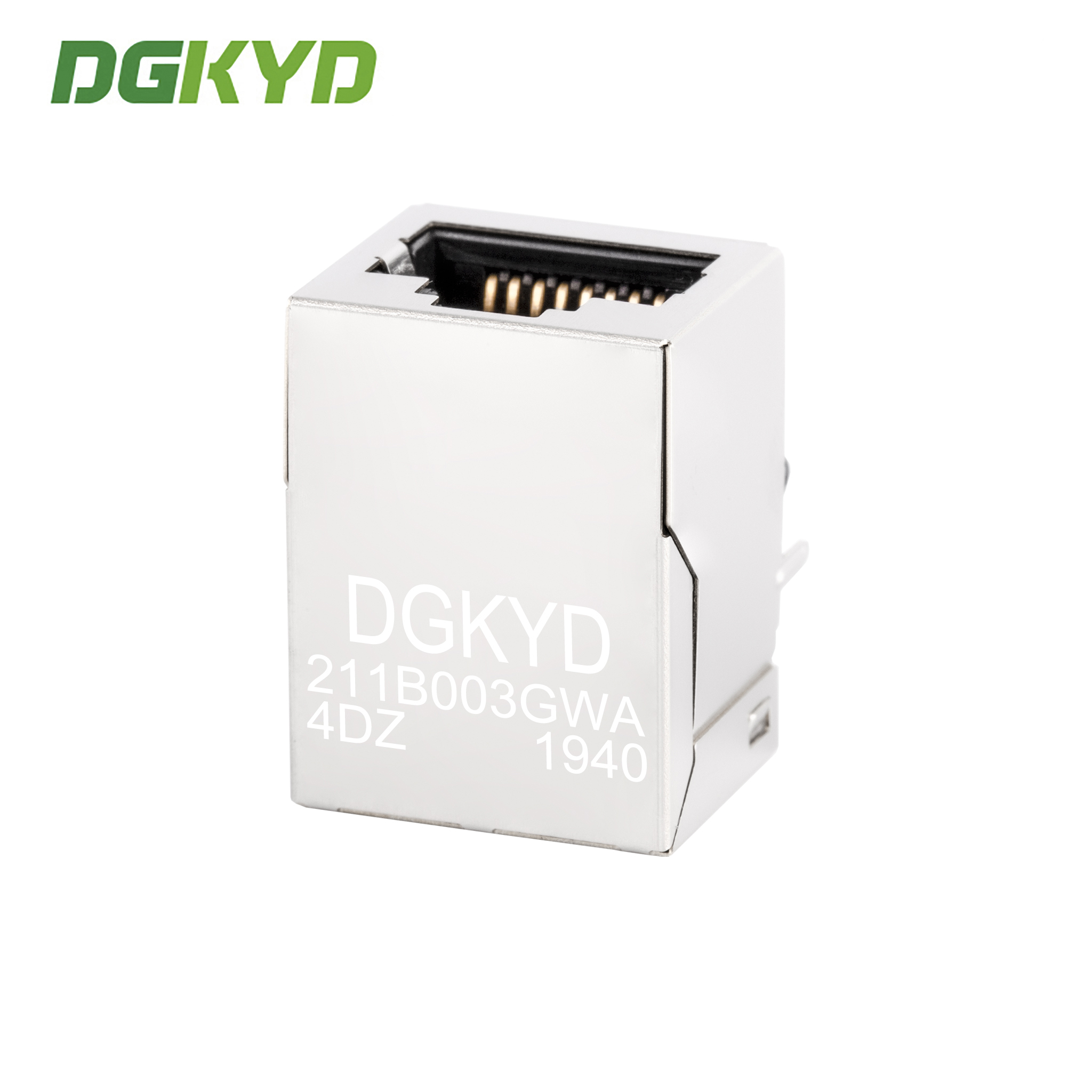

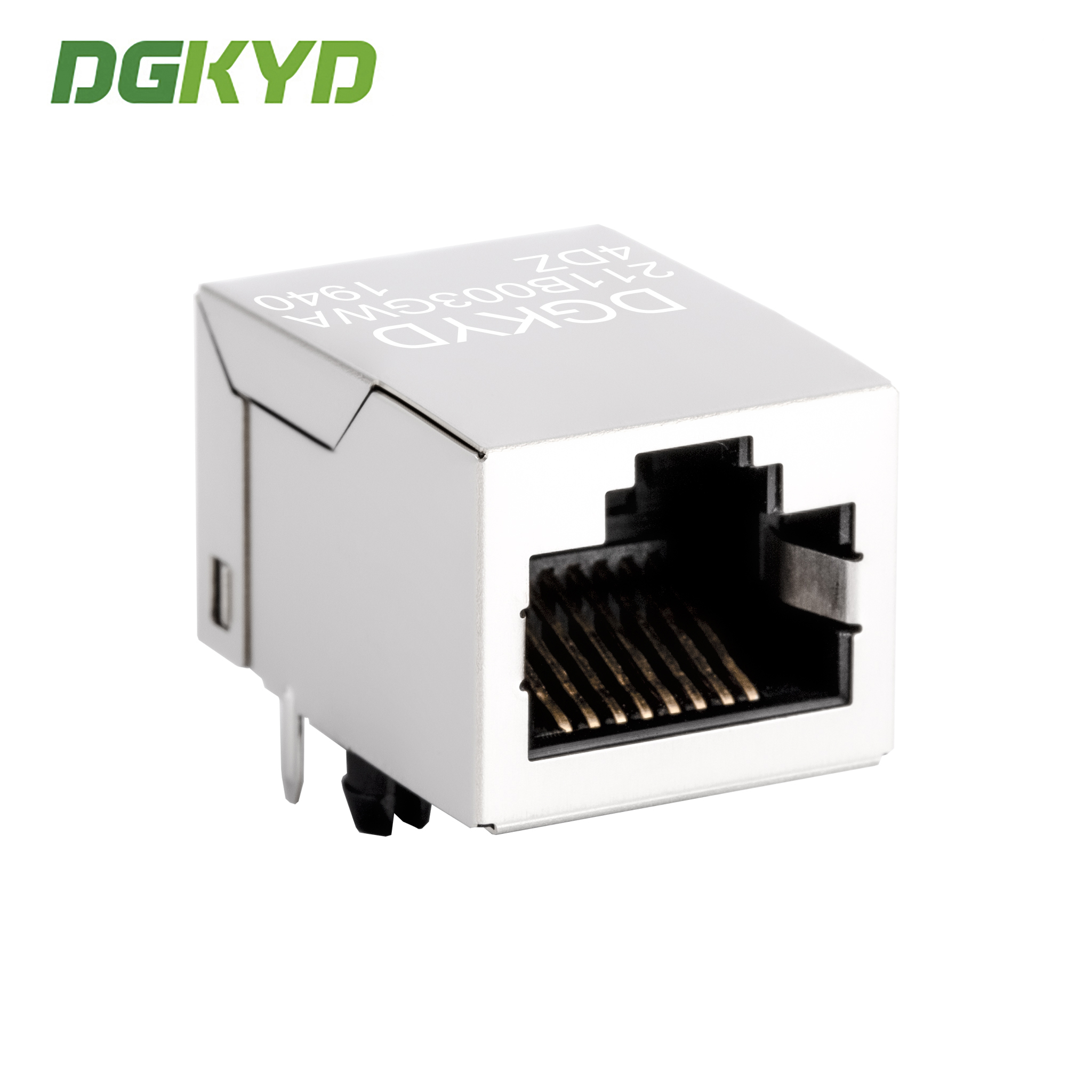

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
