RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL

Ποσότητα παραγγελίας min :	1 Τεμάχιο	Τιμή :	Please contact us to get the latest price.
Συσκευασία λεπτομέρειες :	Δίσκος στο χαρτοκιβώτιο	Χρόνος παράδοσης :	10 Ημέρες
Όροι πληρωμής :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Δυνατότητα προσφοράς :	100.000 τμχ/ημέρα

Τόπος καταγωγής:	Dongguan της Κίνας	Μάρκα:	DGKYD
Πιστοποίηση:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Αριθμό μοντέλου:	KRJ-339KNL

Λεπτομερής ενημέρωση
Εφαρμογή:	οπτική ίνες, κάμερα IP, DVR, DSL, μόντεμ, wifi κ.λπ.	Χαρακτηριστικό:	Θωρακισμένη θύρα δικτύου RJ45
OEM/ODM:	Ναί	τύπος:	Multi pin rj45 magjack
Γένος:	δοχείο RJ45	Όνομα προϊόντος:	RJ45 Modular Jack
Επιμετάλλωση:	Glod επιμετάλλωση 6U/15U/30U/50U	Χρώμα LED:	Πράσινο/πορτοκαλί-κίτρινο
Υλικό στέγασης:	Ο ΜΑΎΡΟΣ PBT	Θερμοκρασία λειτουργίας:	-40°C~+85°C
Θερμοκρασία αποθήκευσης:	-40°C~+85°C

Περιγραφή προϊόντων

RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL

Part Number: KRJ-339KNL

Product Documentation

Technical Parameters

Part Number	KRJ-339KNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Orange-Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Port	Number of Positions	12
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

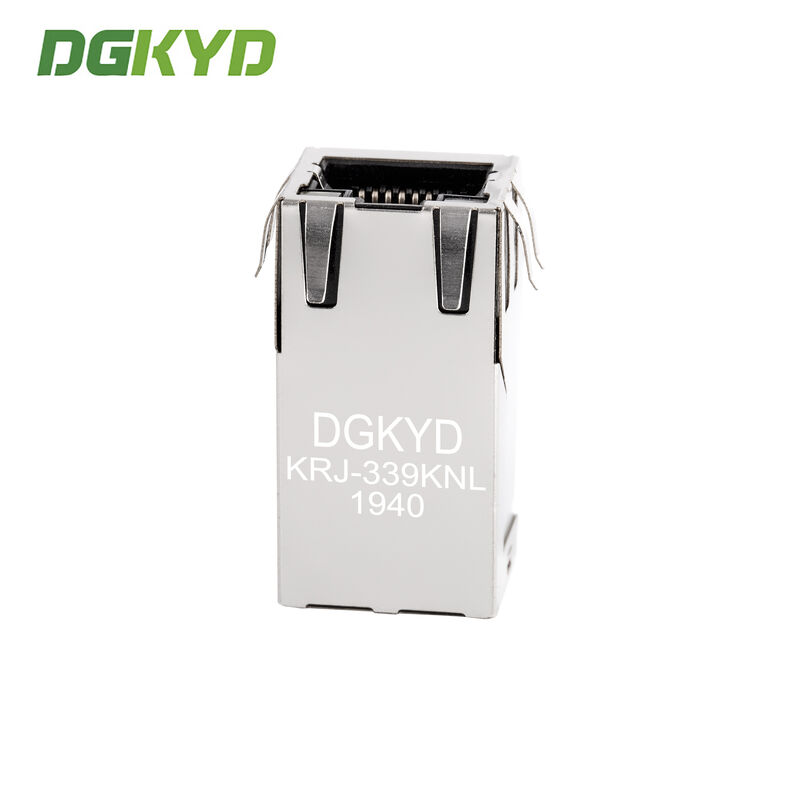

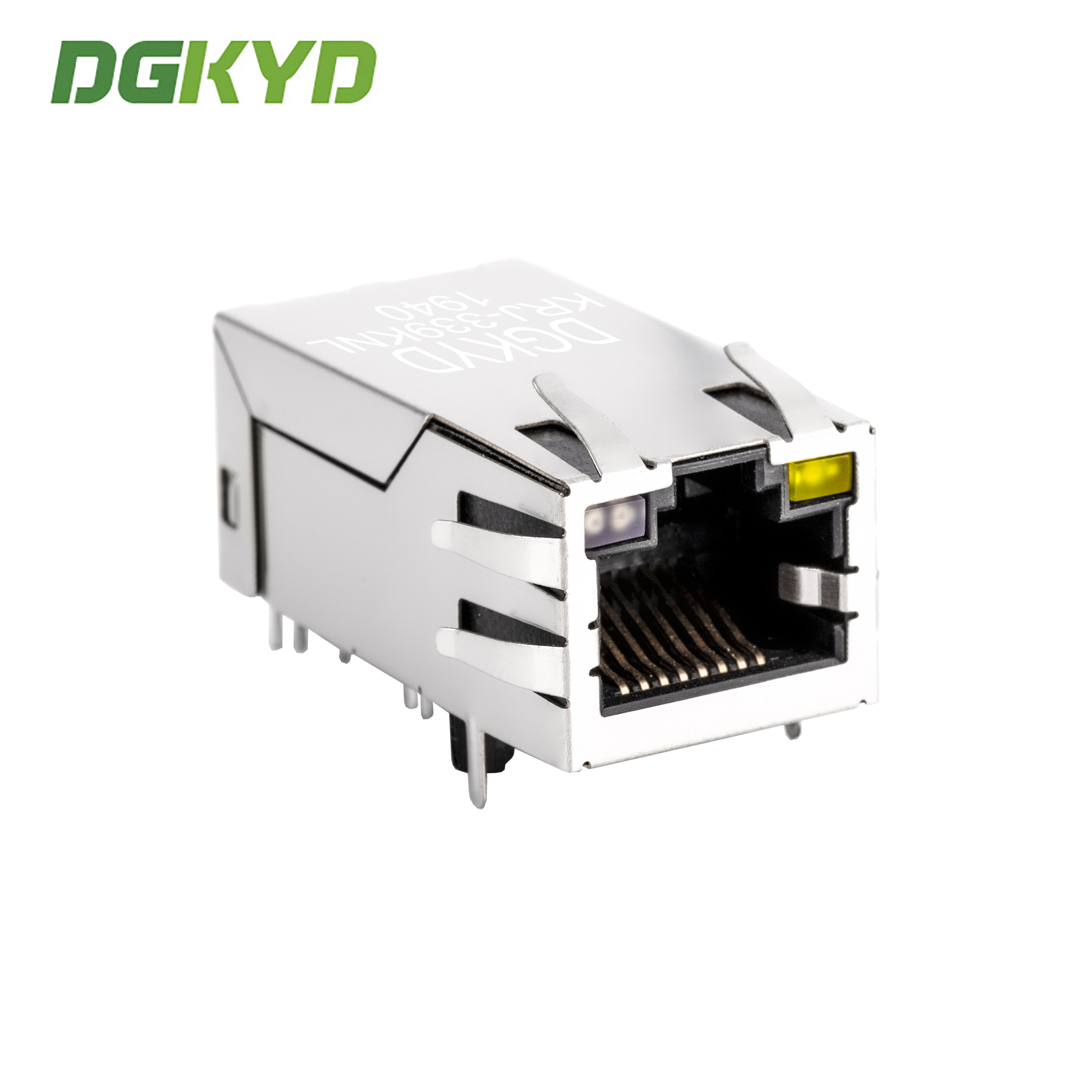

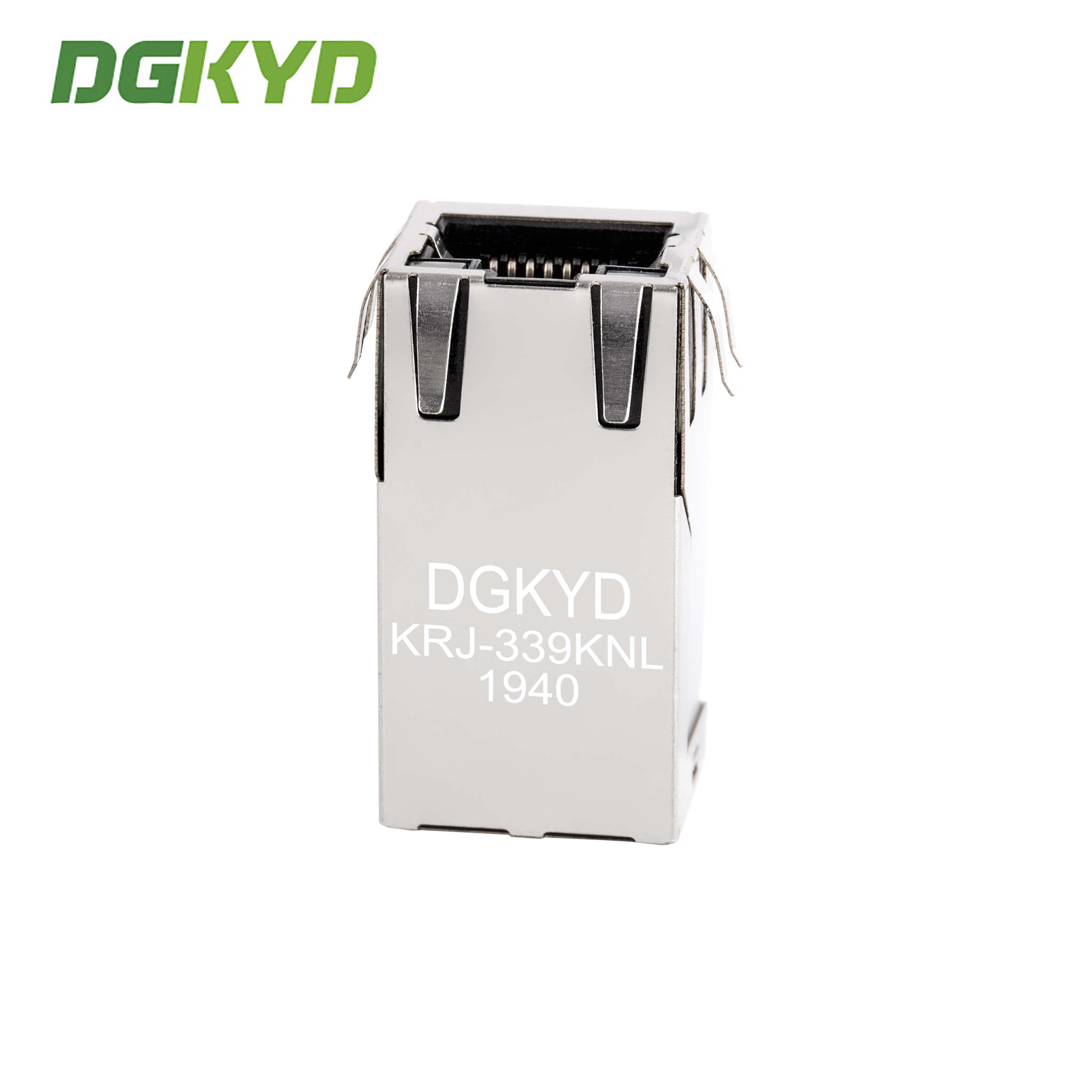

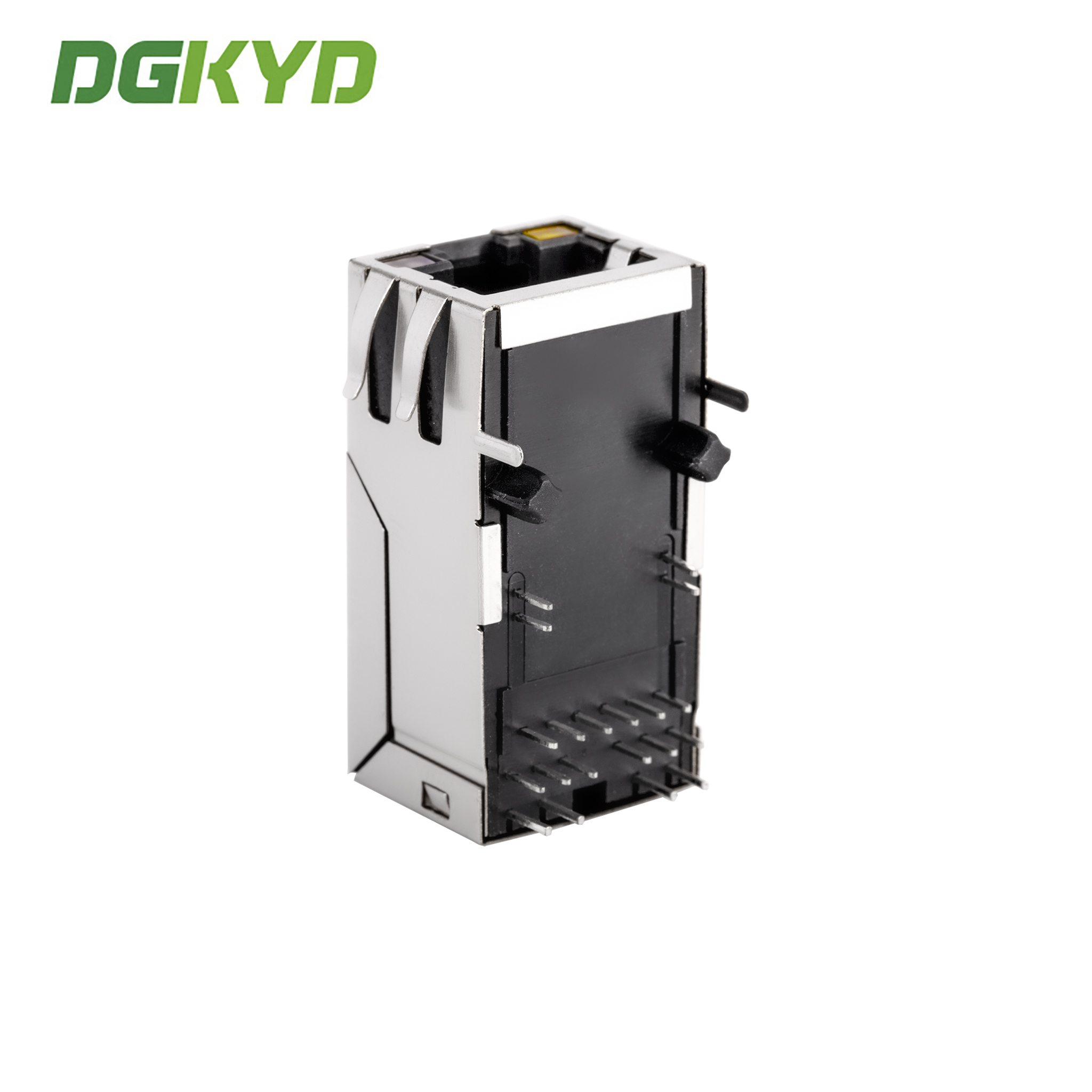

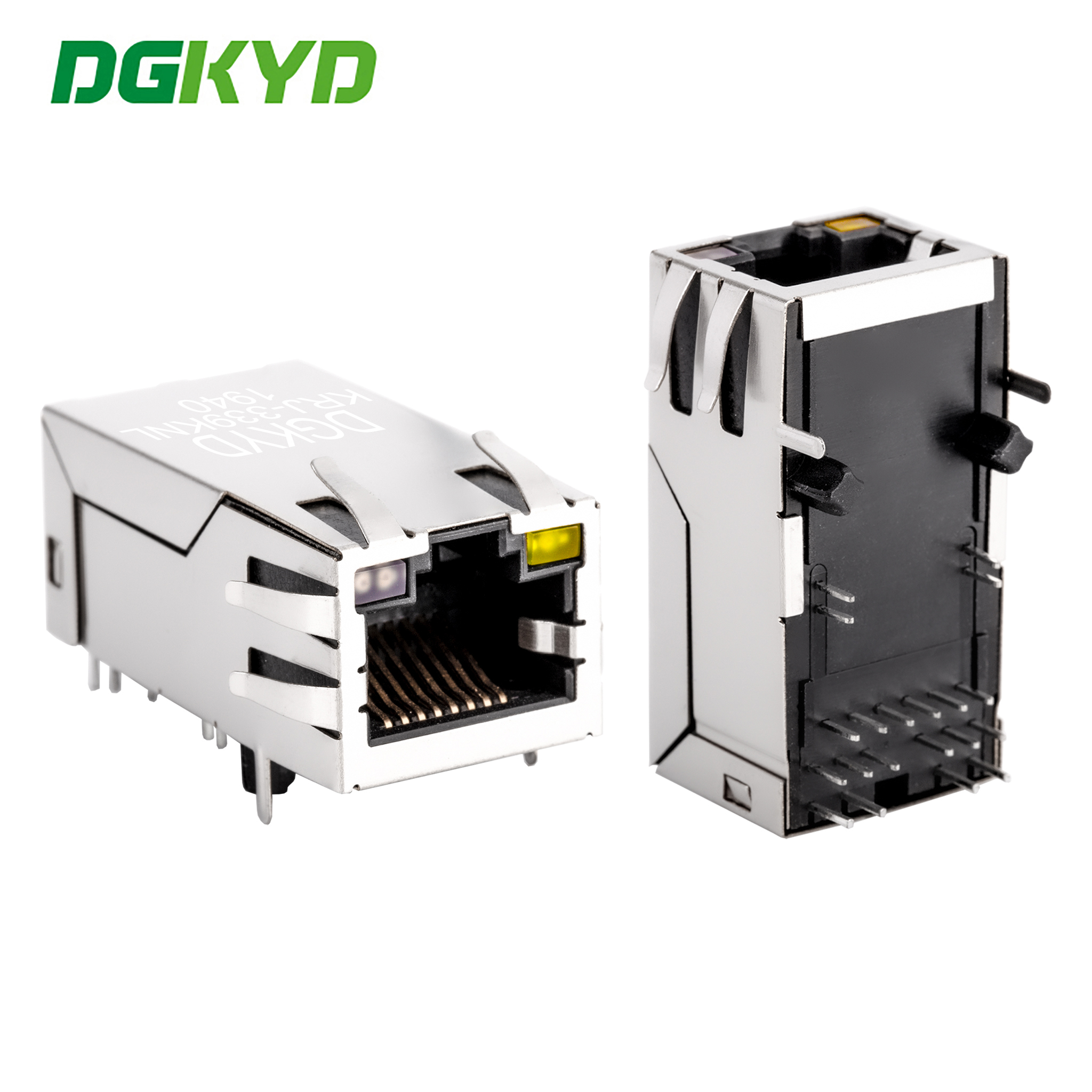

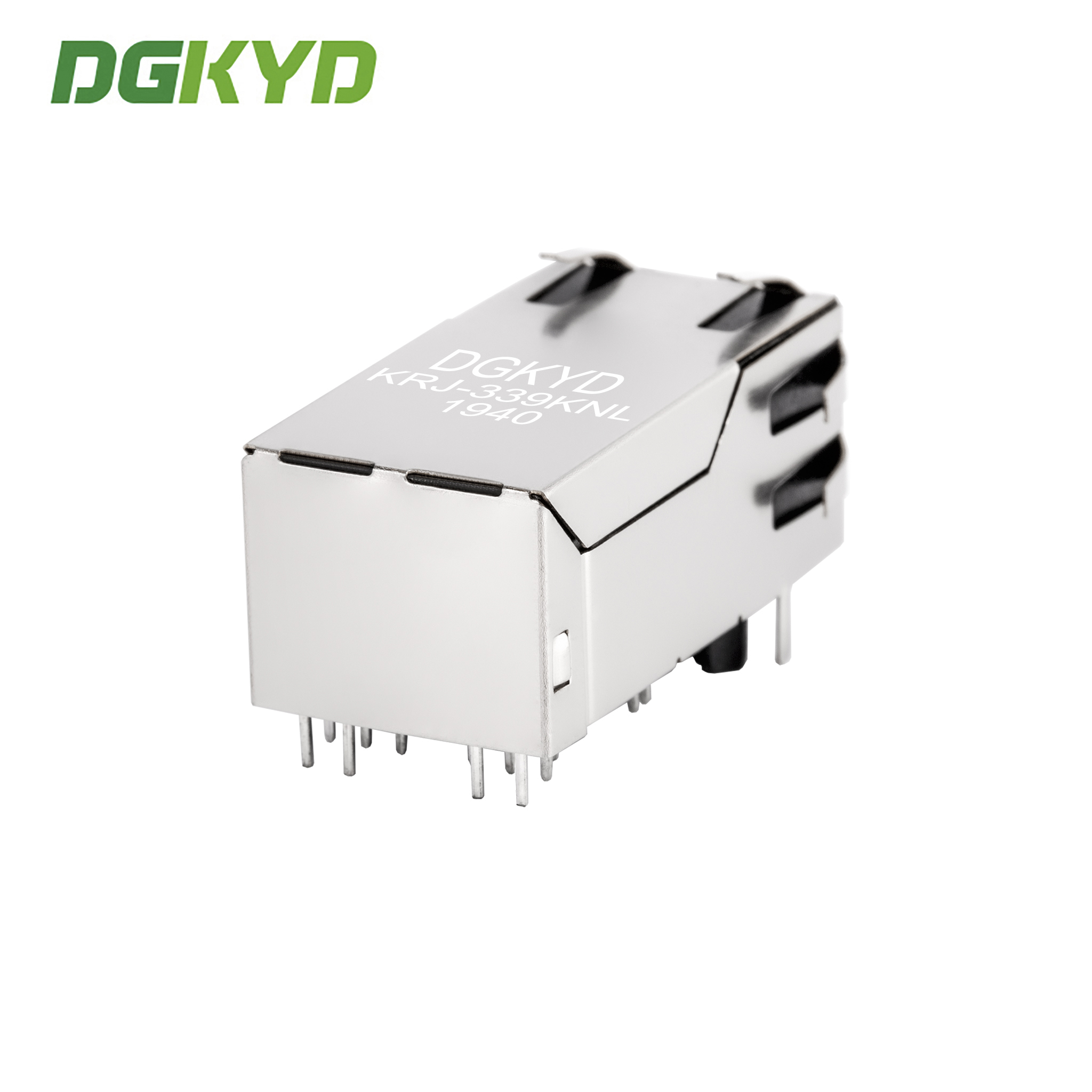

Product Images

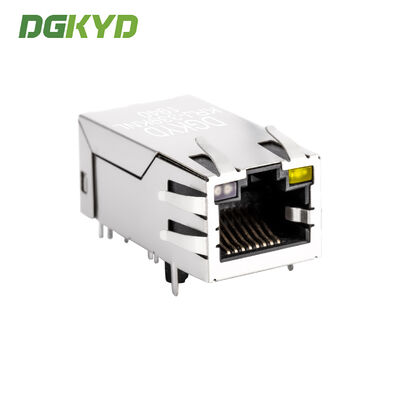

RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 0

RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 1

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
