RJ45 connector 100Mbps integrated Ethernet filter crystal head interface industrial grade network interface DGKYD311B054AA2A4DN

Ποσότητα παραγγελίας min :	1 Τεμάχιο	Τιμή :	Please contact us to get the latest price.
Συσκευασία λεπτομέρειες :	Δίσκος στο χαρτοκιβώτιο	Χρόνος παράδοσης :	10 ημέρες
Όροι πληρωμής :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Δυνατότητα προσφοράς :	100K PCS/ημέρα

Τόπος καταγωγής:	Dongguan της Κίνας	Μάρκα:	DGKYD
Πιστοποίηση:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Αριθμό μοντέλου:	DGKYD311B054AA2A4DN

Λεπτομερής ενημέρωση
Στέγαση:	Ο Μαύρος PBT (UL94V-0)	Αριθ.:	1x1
Τύπος:	RJ45 Γυναίκα Τζακ	Όνομα προϊόντος:	RJ45 με μετασχηματιστή
Ασπίδα RJ45:	Ναί	LED:	Πράσινο/Κίτρινο
Αριθμός θέσεων/επαφών:	8P8c (RJ45, Ethernet)	Χρυσή επένδυση σε καρφίτσες επαφής:	6U
Θερμοκρασία λειτουργίας:	-40 ° C ~+85 ° C	Αποθήκευση Θέρμανση αποθήκευσης:	- 40 ℃ ~ 85 ℃
Επισημαίνω:	RJ45 connector industrial grade , Ethernet filter crystal head , network interface 100Mbps

Περιγραφή προϊόντων

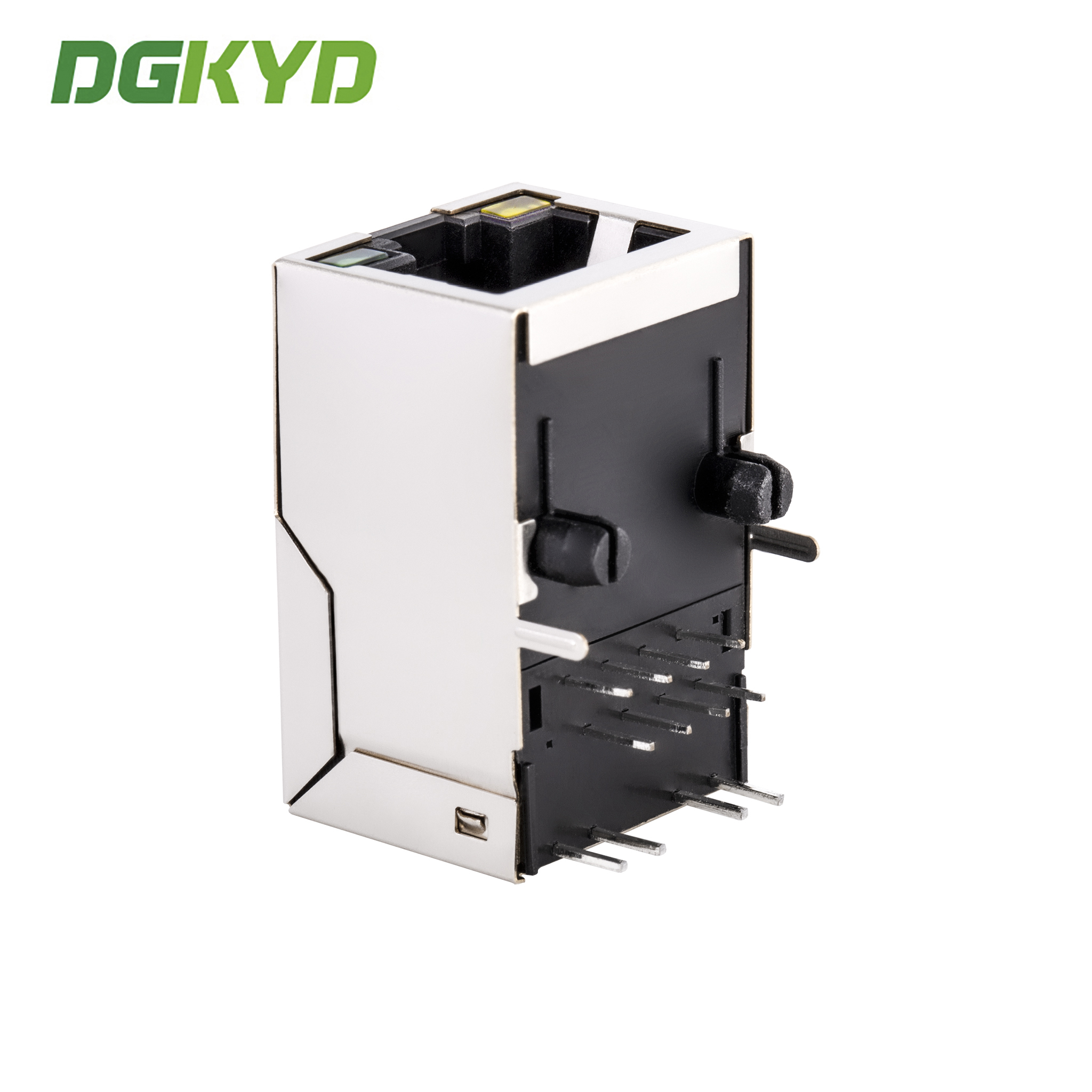

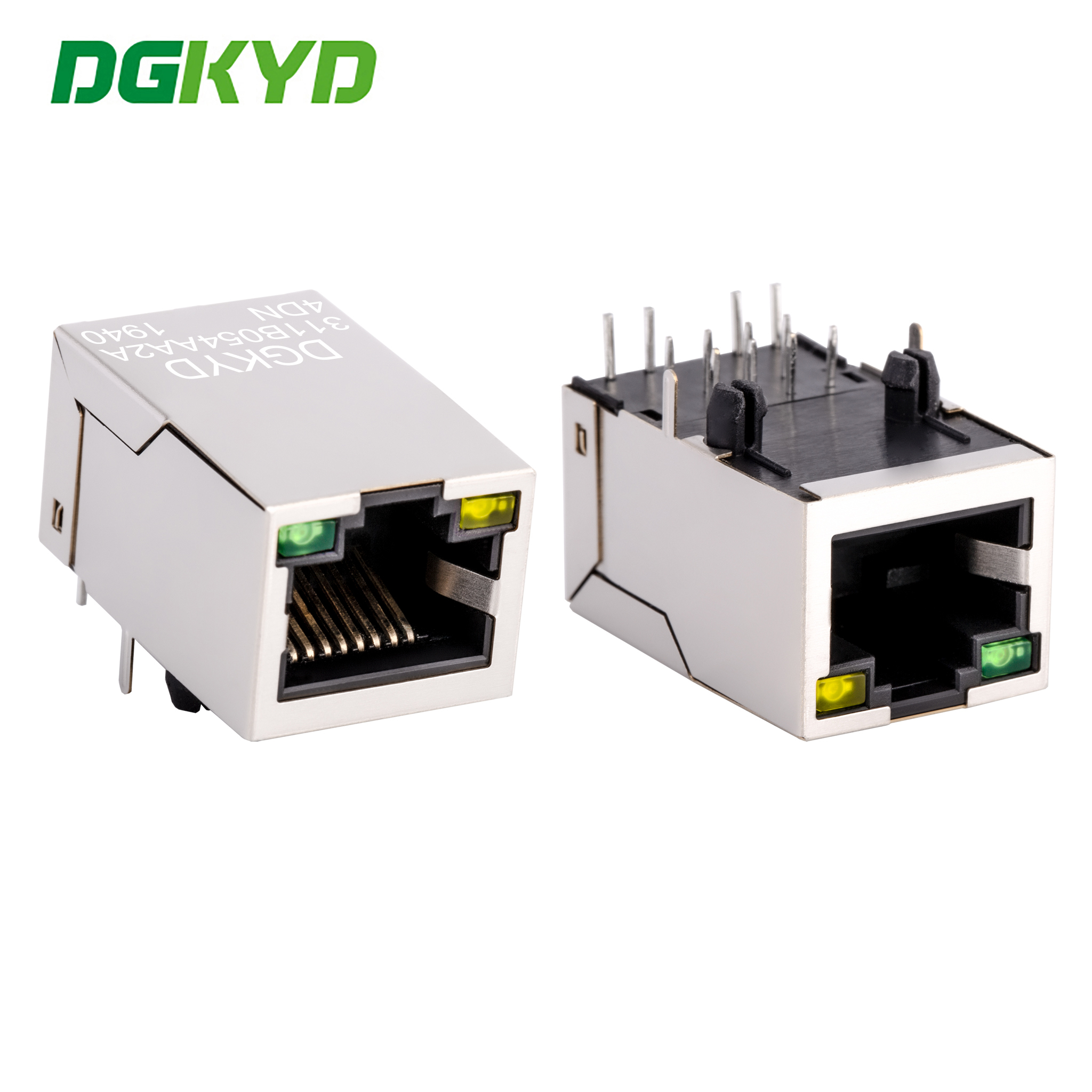

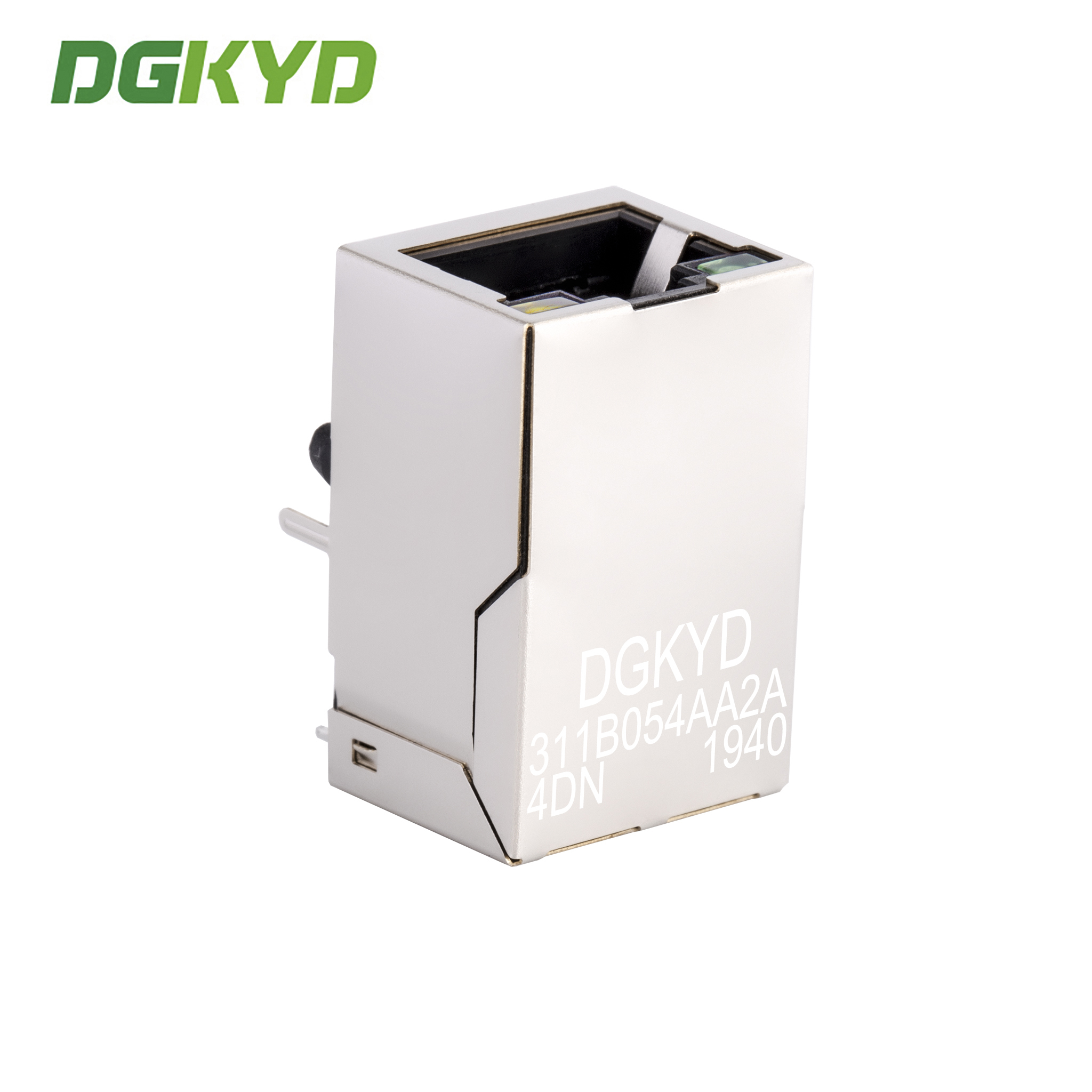

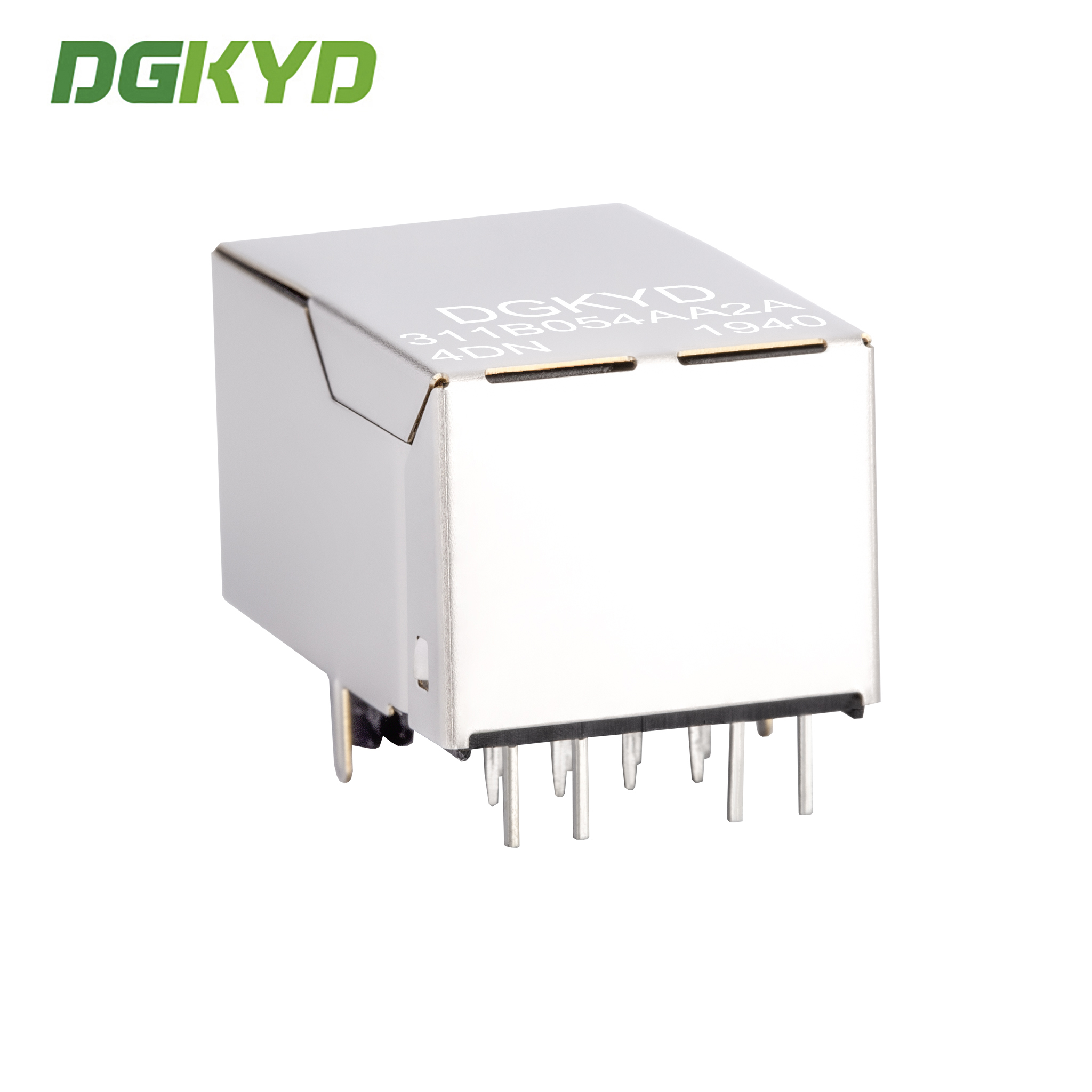

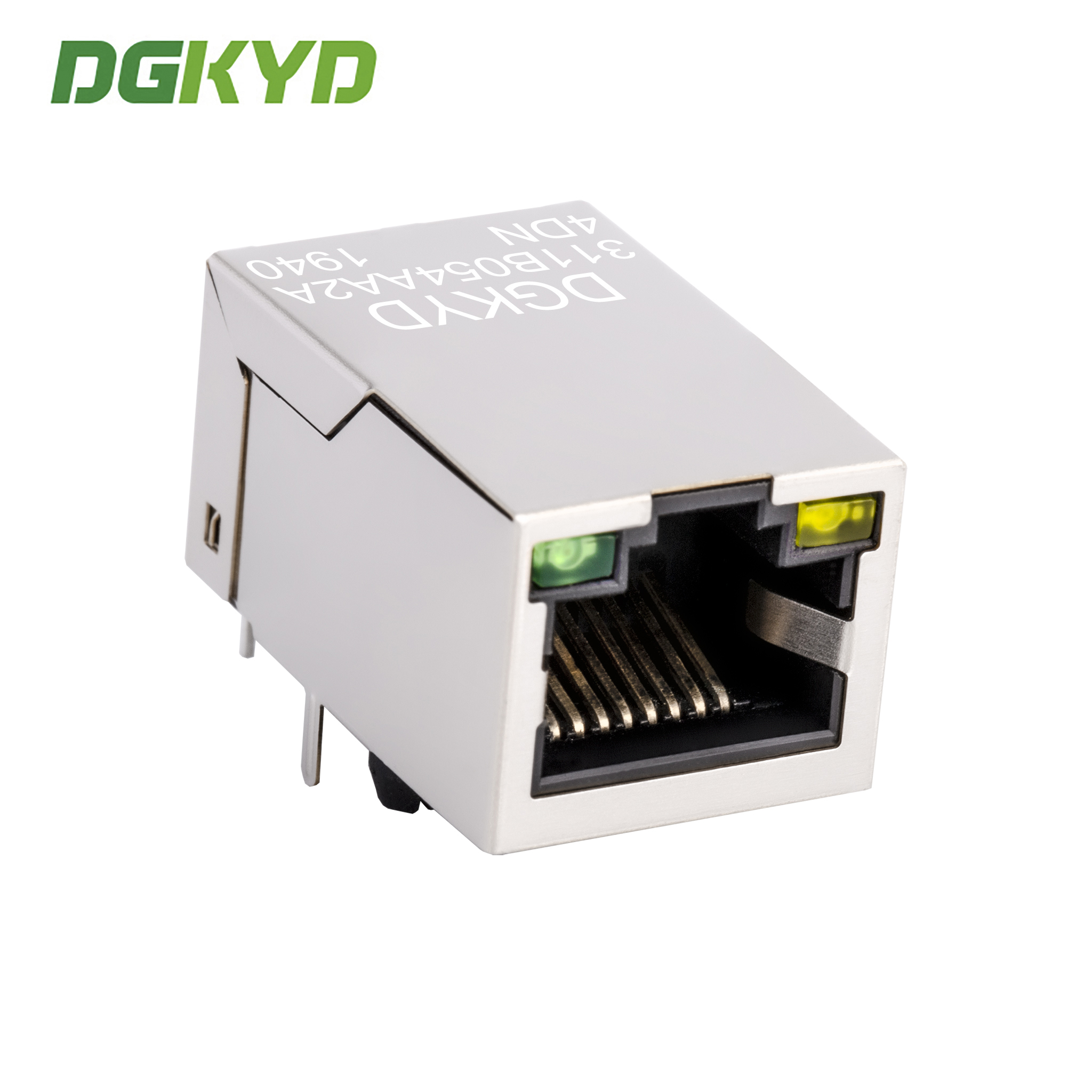

RJ45 Connector 100Mbps Integrated Ethernet Filter Crystal Head Interface

Product Description

Industrial grade network interface DGKYD311B054AA2A4DN

Part Number	DGKYD311B054AA2A4DN	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X1 Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

LED Specifications

Emitting color	Dominant wavelength(nm) (min/max)	Forward voltage (v)	Forward current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Manufacturer Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Customization options available:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or not
- Coil ratio of magnetic core
- Magnetics circuit diversification optional
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)
Products meet industry standards for electrical properties, appearance, mechanical properties, and environmental protection

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
