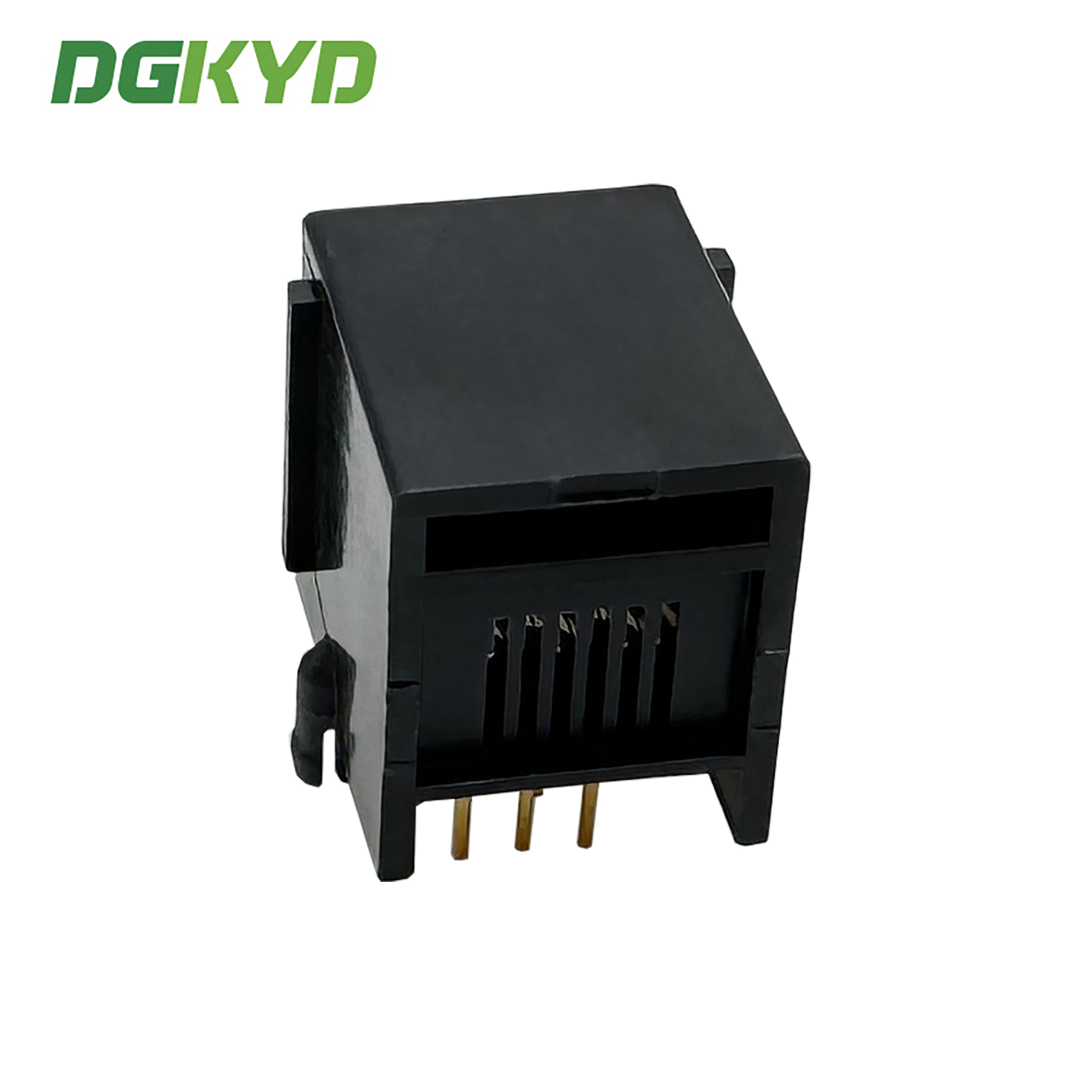

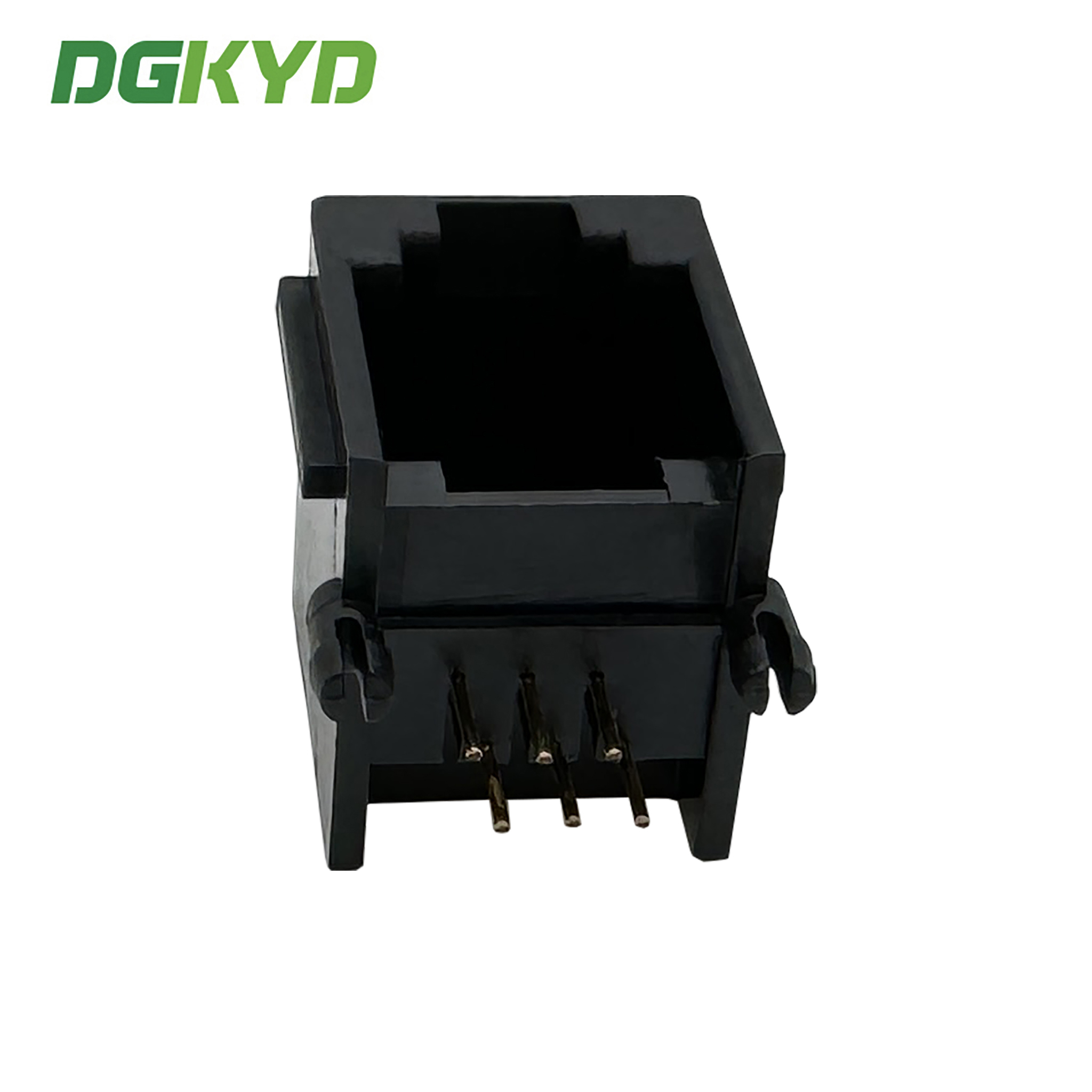

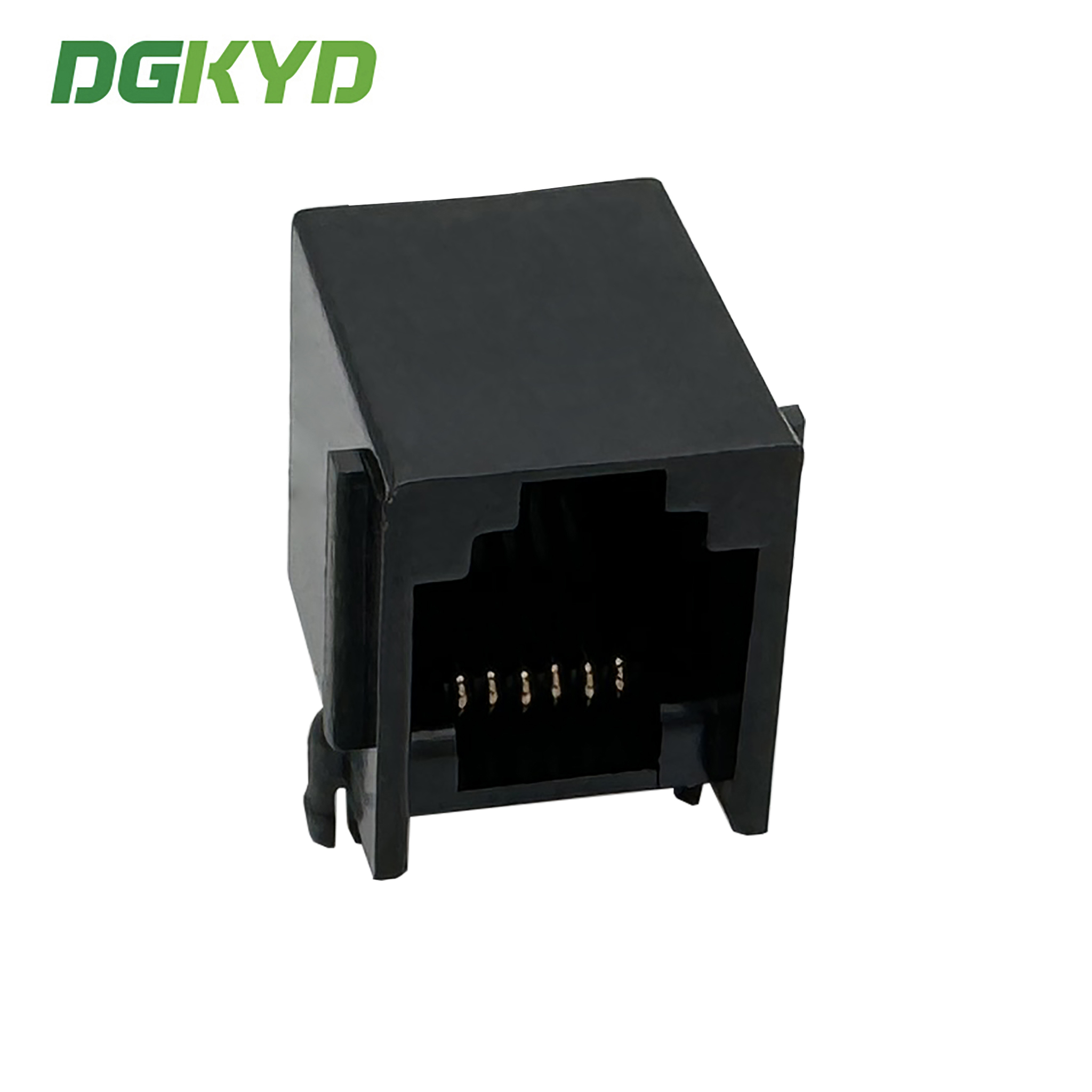

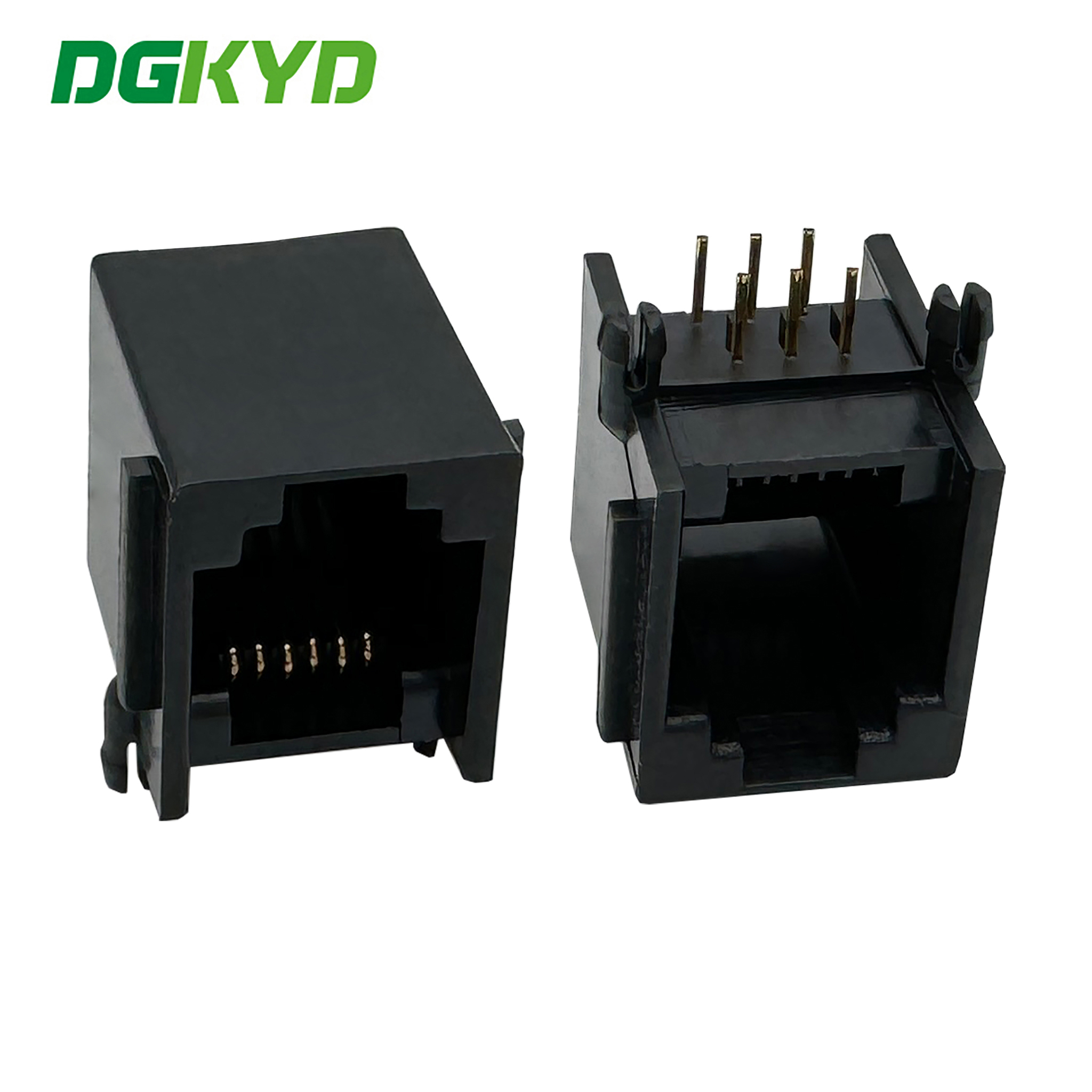

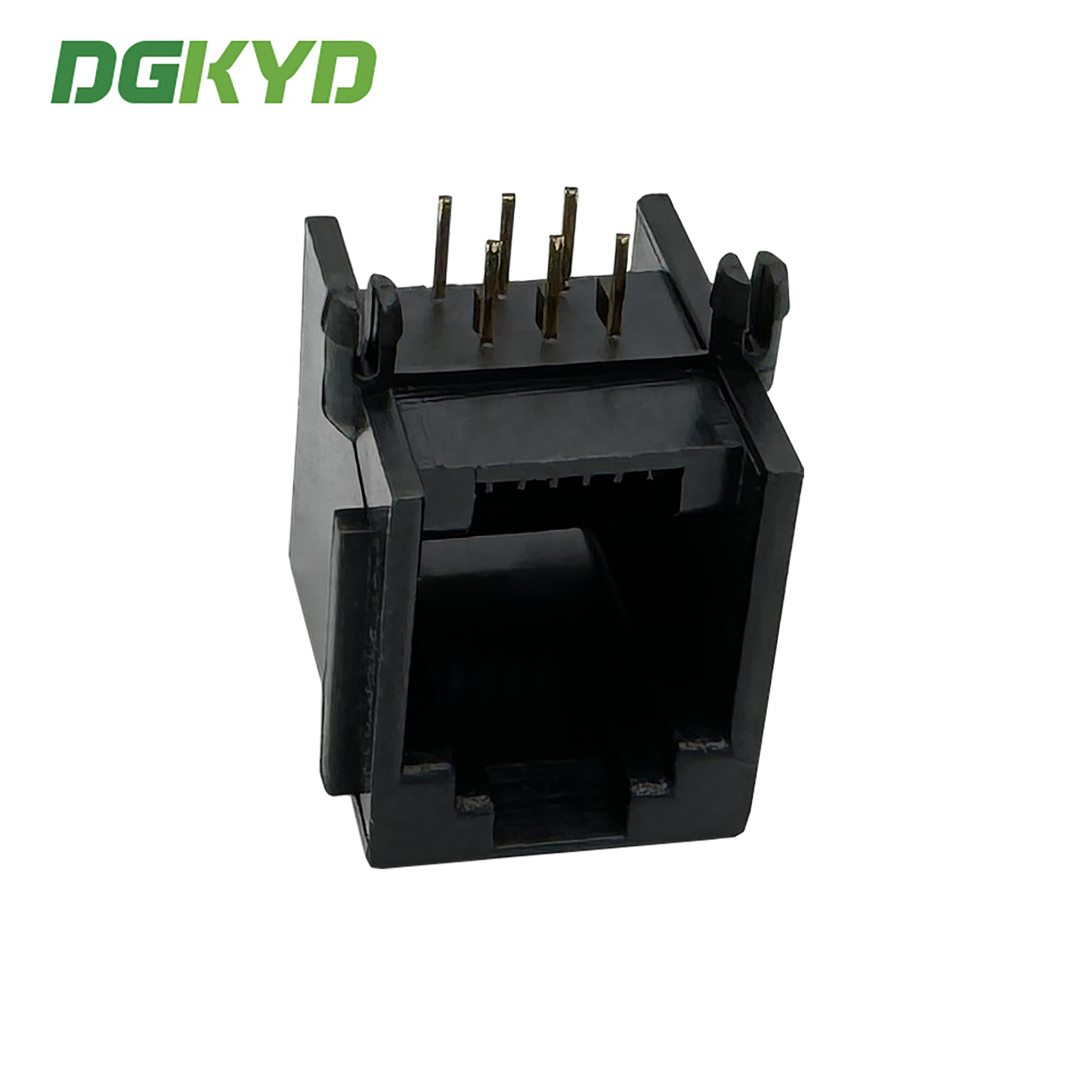

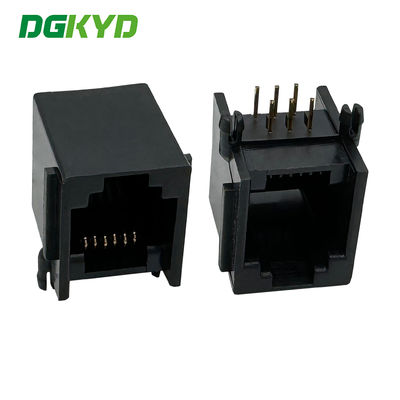

RJ11 industrial grade horizontal network port 6P6C network connector without light DGKYD5523E1166IWA1DY1

Ποσότητα παραγγελίας min :	Διαπραγματεύσιμος	Τιμή :	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες :	Δίσκος στο χαρτοκιβώτιο	Χρόνος παράδοσης :	7-14 ημέρες
Όροι πληρωμής :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Δυνατότητα προσφοράς :	60000 κομμάτια την ημέρα.

Τόπος καταγωγής:	Dongguan της Κίνας	Μάρκα:	DGKYD
Πιστοποίηση:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Αριθμό μοντέλου:	DGKYD5523E1166IWA1DY1

Λεπτομερής ενημέρωση
Όνομα προϊόντος:	rj11 συνδετήρας	Τύπος σύνδεσης:	Γρύλος
Εφαρμογή:	Υπολογιστής, δρομολογητής, δίκτυο διανομέα USB rj11 κ.λπ.	Γένος:	Θηλυκός
Μετασχηματιστής:	RJ11 χωρίς μετασχηματιστή	Χρυσή επένδυση σε καρφίτσες επαφής:	FU
Θερμοκρασία λειτουργίας:	-40 ° C ~+85 ° C	Θερμοκρασία αποθήκευσης:	-40 ° C ~+85 ° C
Αριθμός βελονιών:	6P6C
Επισημαίνω:	RJ11 industrial grade network connector , RJ11 6P6C horizontal network port , RJ11 jack without light

Περιγραφή προϊόντων

RJ11 Industrial Grade Horizontal Network Port 6P6C Network Connector Without Light DGKYD5523E1166IWA1DY1

Product Description

RJ45 industrial grade horizontal network port 6P6C network connector without light DGKYD5523E1166IWA1DY1

Technical Specifications

Part Number	DGKYD5523E1166IWA1DY1	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ11	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	No	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative)
Port Configuration	single Ports	Number of Positions	6
Jack Configuration	1X1	Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Technical Details

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃

Product Features

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT,PA46,PA9T, LCP)

Performance Parameters

Applied to Ethernet, coil ratio: 1CT: 1CT
Meet IEEE 802.3 & ANSI X 3.263 standard
Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard
Withstand voltage: 2250VDC 1mA max, 60s
Impedance: 100 ohms
RJ45 interface meets FCC 68.5 standard
DC resistance: 1.5 Ω

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
