DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED

Ποσότητα παραγγελίας min : 1 Τιμή : $0.90-1.50
Τόπος καταγωγής: Guangdong, Κίνα Μάρκα: DGKYD
Αριθμό μοντέλου: DGKYD811B198FF5A10DQ057

Λεπτομερής ενημέρωση

Τύπος: Rj45 Συσκευασία: ΒΟΥΤΙΑ
Γένος: Θηλυκός Υλικό στέγασης: Ο Μαύρος LCP
Διάλεξη LED: Πράσινος-πορτοκάλι/κίτρινος Μάνταλο: Επάνω
Αριθμός θυρών: 1 Αριθμός επαφών: 8
Τα PCB τοποθετούν τη γωνία: Δευτερεύουσα είσοδος Τοποθετήστε το ύφος: Με τρύπα
Ταχύτητα απόδοσης: 10/100Base-T Διαμόρφωση θύρας: μονόκλινο
Αριθμός θέσεων: 6 Τερματικά ανά λιμένα: 8
Υλικό ασπίδας: Κράμα χαλκού preplated με το νικέλιο
Επισημαίνω:

RJ45 single port connector 100Mbps

,

RJ45 connector with dual-color LED

,

single port RJ45 with warranty

Περιγραφή προϊόντων

Factory Supply 1x1 Single-Port 100Mbps Integrated Transformer RJ45 Network Connector

Dual-Color LED with pins 1, 2, 3, 7, 8, 9 excluded for specialized network applications.

Product Specifications
Part Number DGKYD811B198FF5A10DQ057 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch Up
Filter With Filter LED Option With LED
LED Color Green-Orange/Yellow Panel Stops With Panel Stops
Shielded Yes Applies To Printed Circuit Board
Performance Speed 10/100BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration Single Number of Positions 6
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u/15u/30u/50u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material LCP Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
Product Images

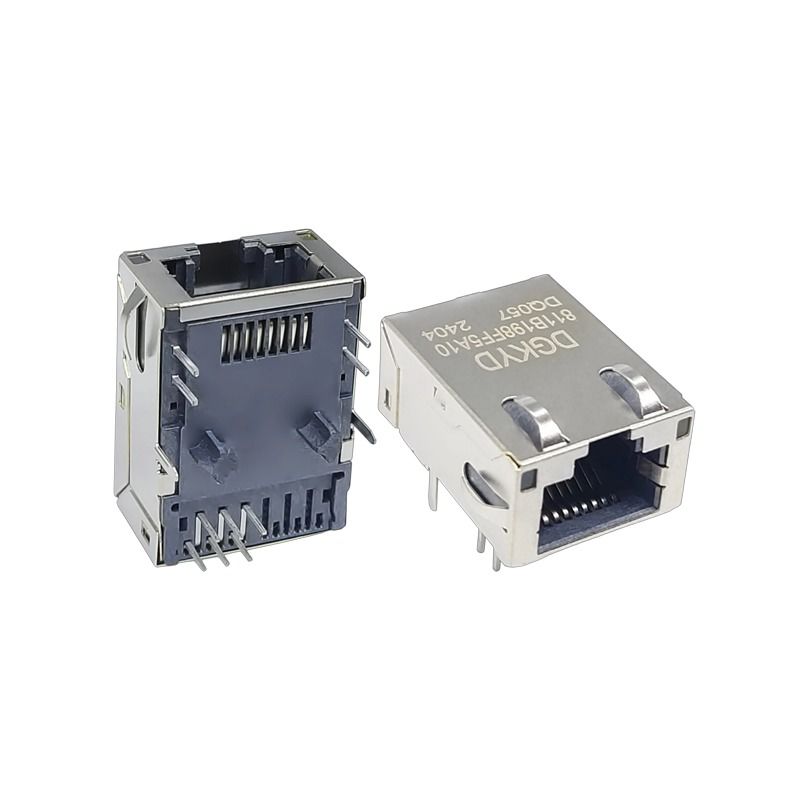

DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED 0
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED 1
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED 2
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED 3
