Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack DGKYD411Q117AF5D1DP

Ποσότητα παραγγελίας min :	1 κομμάτι	Τιμή :	Please contact us to get the latest price.
Συσκευασία λεπτομέρειες :	Τραπέζι σε κουτί	Χρόνος παράδοσης :	10 ημέρες
Όροι πληρωμής :	Τ/Τ, D/P, D/A, L/C, Western Union, MoneyGram	Δυνατότητα προσφοράς :	100 χιλιάδες τεμάχια την ημέρα

Τόπος καταγωγής:	DongGuan της Κίνας	Μάρκα:	DGKYD
Πιστοποίηση:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Αριθμό μοντέλου:	DGKYD411Q117AF5D1DP

Λεπτομερής ενημέρωση
Ονομασία του προϊόντος:	Ενσωματωμένο RJ45 Jack	ΤΑΧΥΤΗΤΑ:	Κατηγορία 6
Τοποθετήστε το ύφος:	ΔΕΠ	Λιμάνι:	Μονόκλινο
Κοχύλι RJ45 μετάλλων:	Κράμα χαλκού, κασσίτερος και νικέλινος	RJ45 τερματικό PCB:	Χαλκός φωσφόρων, ουρά-κασσίτερος πέρα από Nickl
Ασπίδα:	επένδυση νικελίου χαλκού φωσφόρων	OEM/ODM:	Ναι
Αριθμός θέσεων/επαφών:	8p12c (RJ45, Ethernet)	Χρυσή επένδυση στις καρφίτσες επαφών:	6U
Θέρμανση αποθήκευσης:	-40°C~+85°C	Θερμοκρασία Λειτουργίας:	-40°C~+85°C

Περιγραφή προϊόντων

Drawing

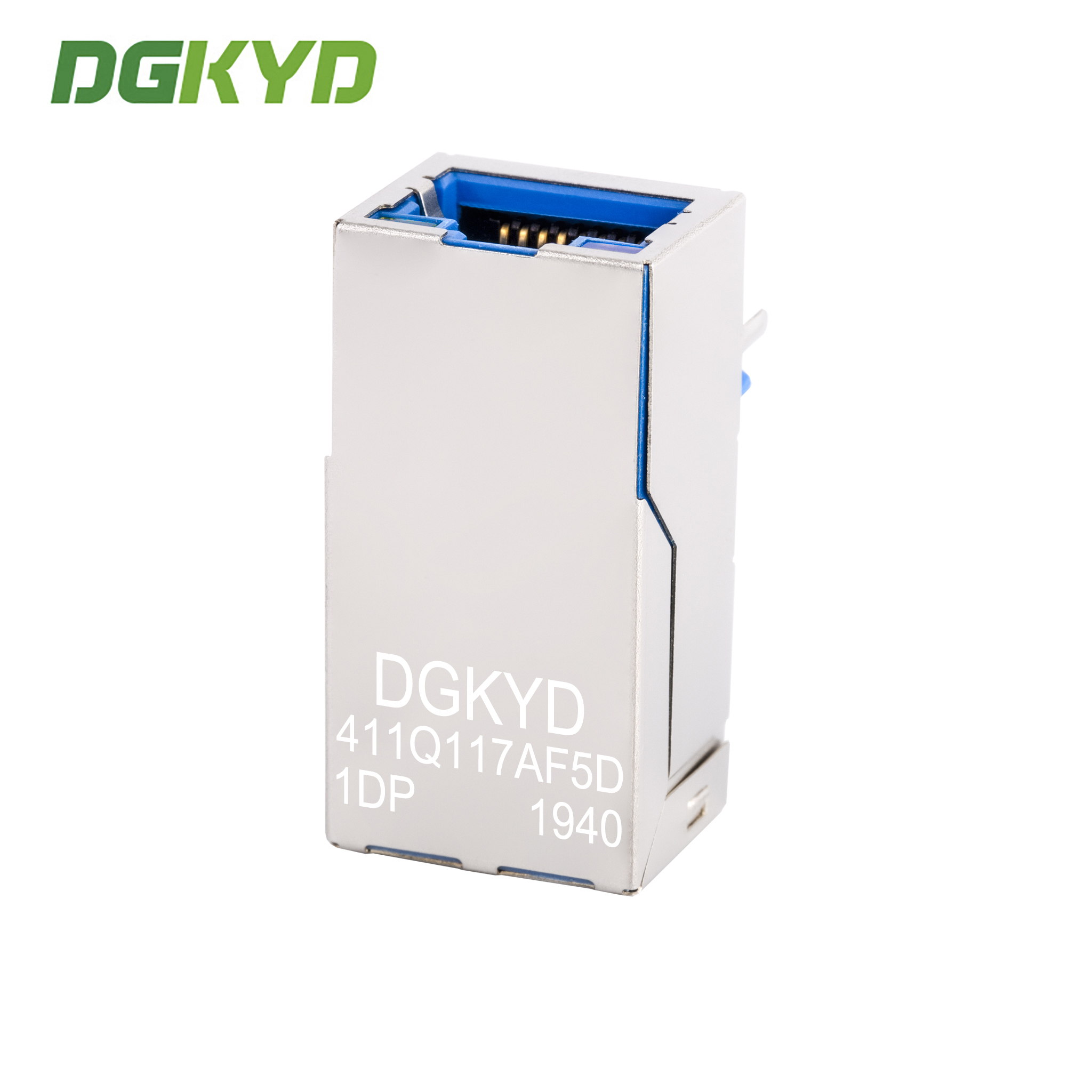

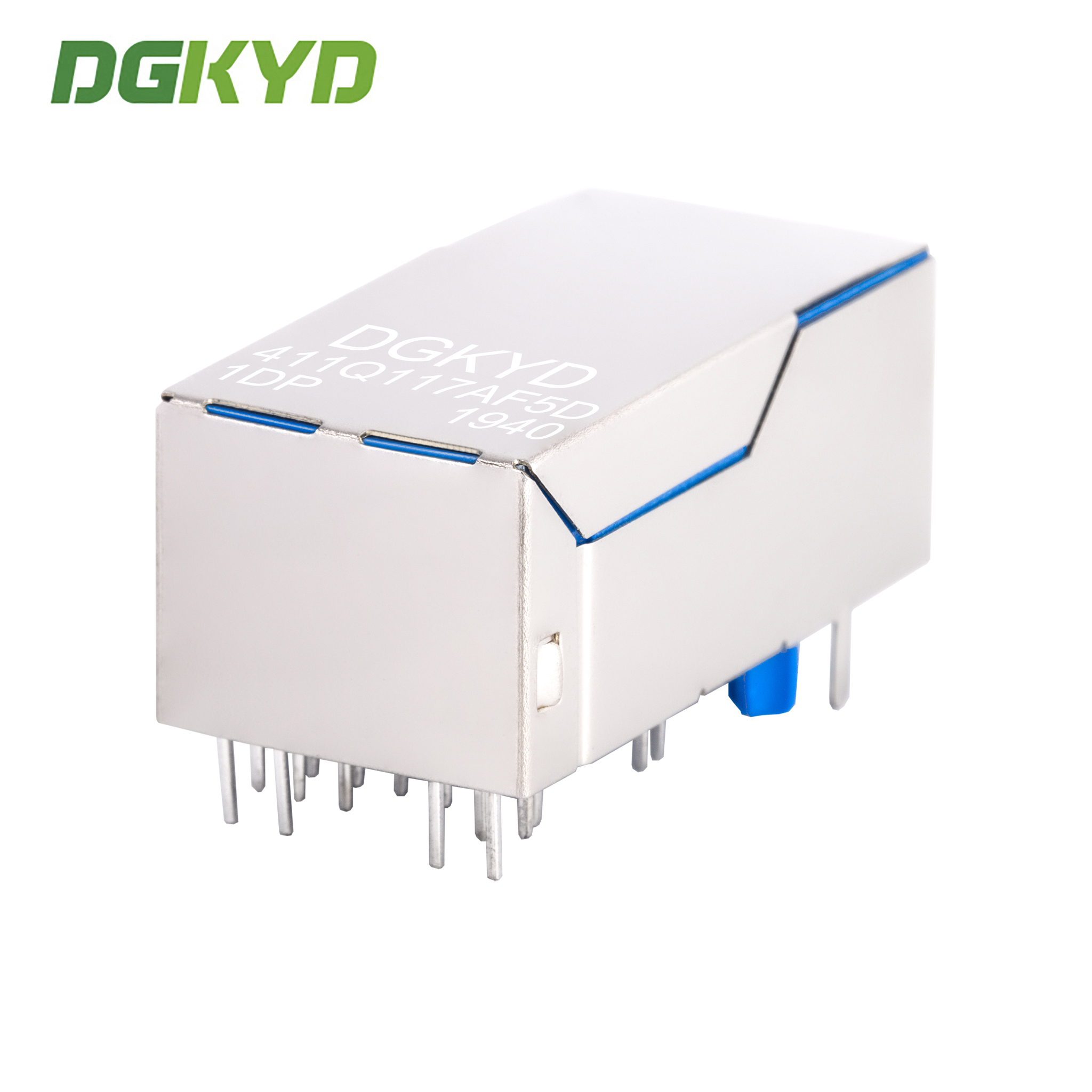

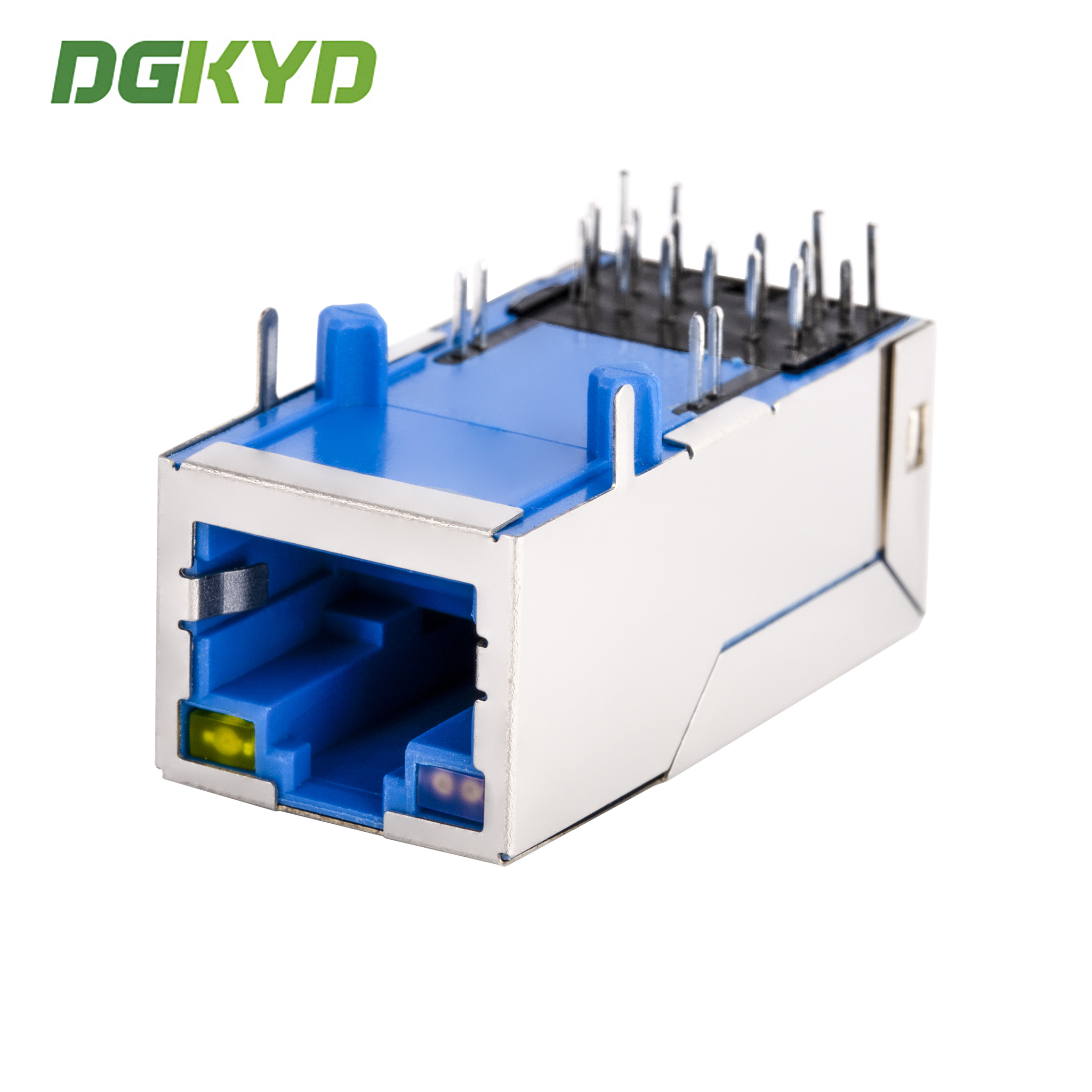

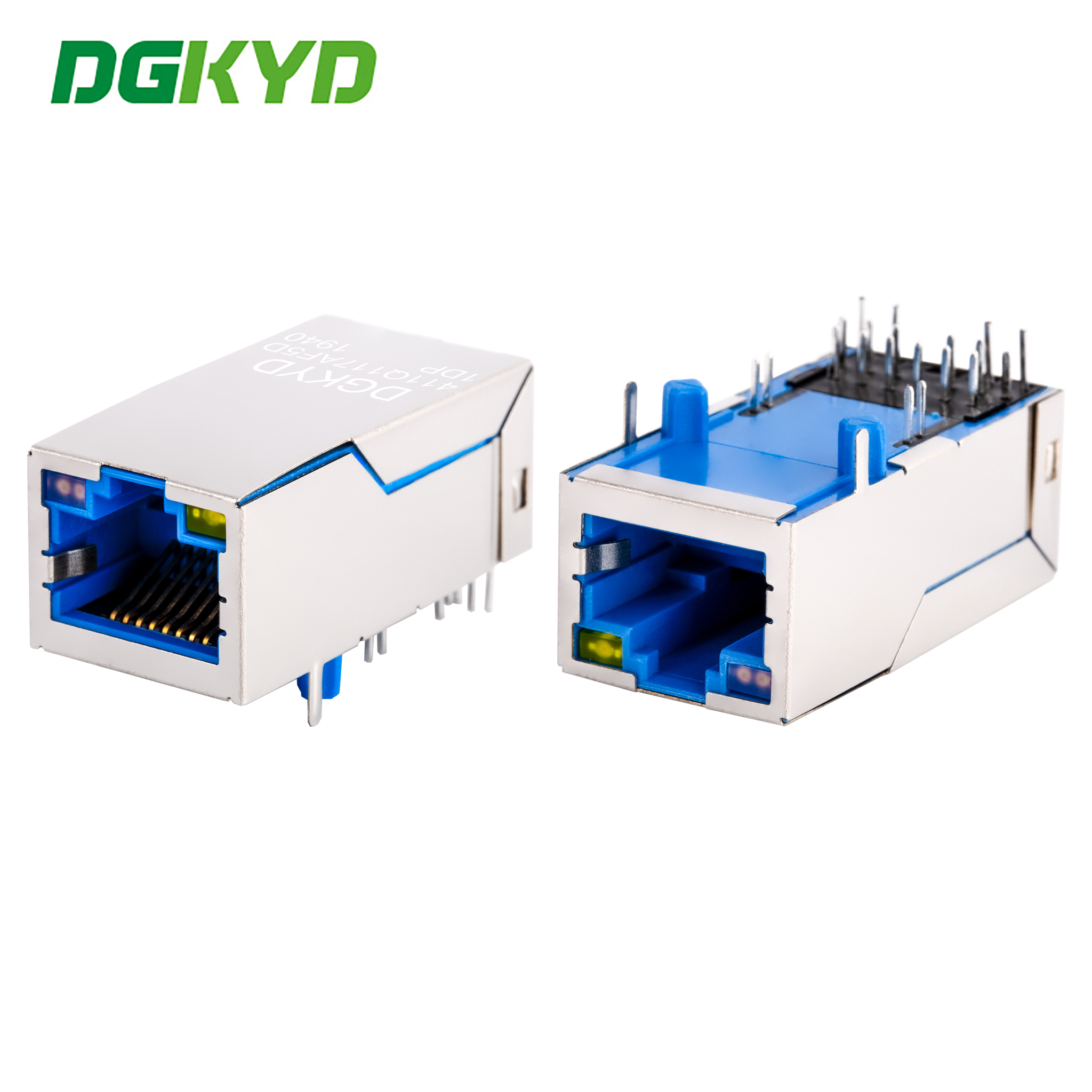

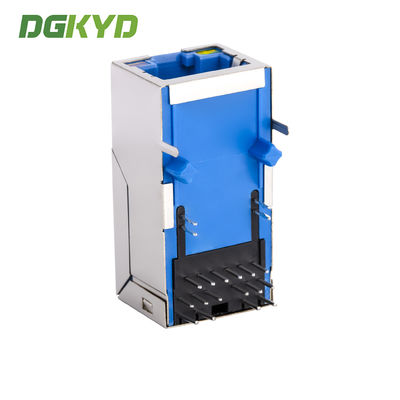

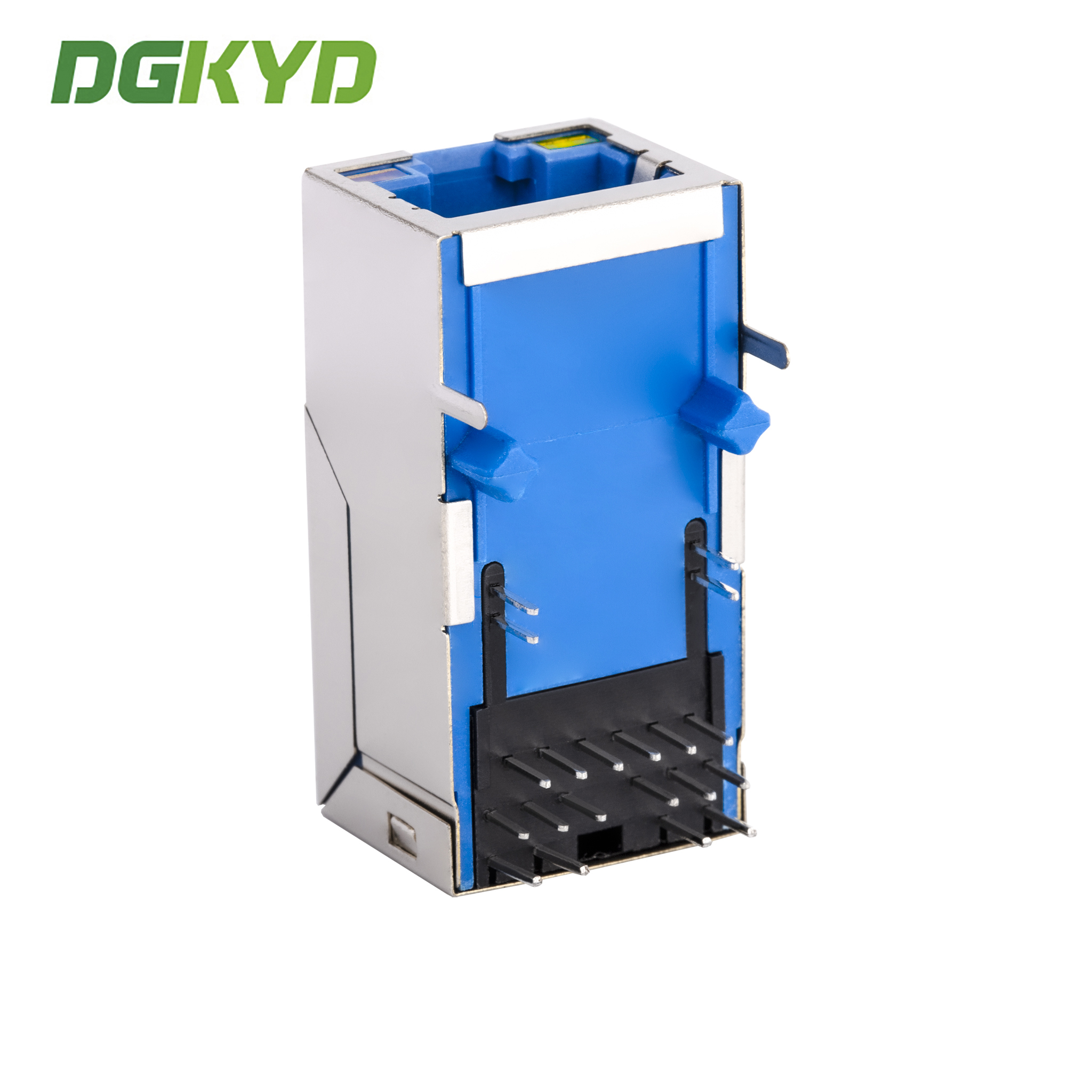

Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack DGKYD411Q117AF5D1DP

Product Specification Document
DGKYD411Q117AF5D1DP.pdf

Paramters

Part Number	DGKYD411Q117AF5D1DP	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Orange-Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	SIngle Ports	Number of Positions	12
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Blue
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Gigabit Ethernet connector RJ45 Female Jack Single Port 1000M PoE+ Registered jack DGKYD411Q117AF5D1DP 0

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature:- 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
