RJ45 Connector 1X4 100Mbps Ethernet Socket With Light And Shielded Ethernet Interface DGKYD114B002DB2A1D

Ποσότητα παραγγελίας min :	1 κομμάτι	Τιμή :	Please contact us to get the latest price.
Συσκευασία λεπτομέρειες :	Δίσκος στο χαρτοκιβώτιο	Χρόνος παράδοσης :	10 ημέρες
Όροι πληρωμής :	Τ/Τ, D/P, D/A, L/C, Western Union, MoneyGram	Δυνατότητα προσφοράς :	100 χιλιάδες τεμάχια την ημέρα

Τόπος καταγωγής:	DongGuan της Κίνας	Μάρκα:	DGKYD
Πιστοποίηση:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Αριθμό μοντέλου:	DGKYD114B002DB2A1D

Λεπτομερής ενημέρωση
Ασπίδα RJ45:	Ναι.	No.Port:	4 λιμένας
Ονομασία του προϊόντος:	RJ45 με μετασχηματιστή	Τύπος:	RJ45 θηλυκό
Διαμονή:	Φαινολικό, PBT Μαύρο (UL94V-0)	Πλαστικός πυρήνας:	Συμπλήρωμα από γυάλινη ίνα PBT Μαύρο ((UL94V-0), ROHS
Θέρμανση αποθήκευσης:	-40°C~+85°C	Αριθμός βελονιών:	8P8C
Θερμοκρασία λειτουργίας:	-40 °C έως +85 °C	LED:	Πράσινο/Κίτρινο
Επισημαίνω:	1X4 100Mbps Ethernet socket , Ethernet socket with light , RJ45 Connector 1X4

Περιγραφή προϊόντων

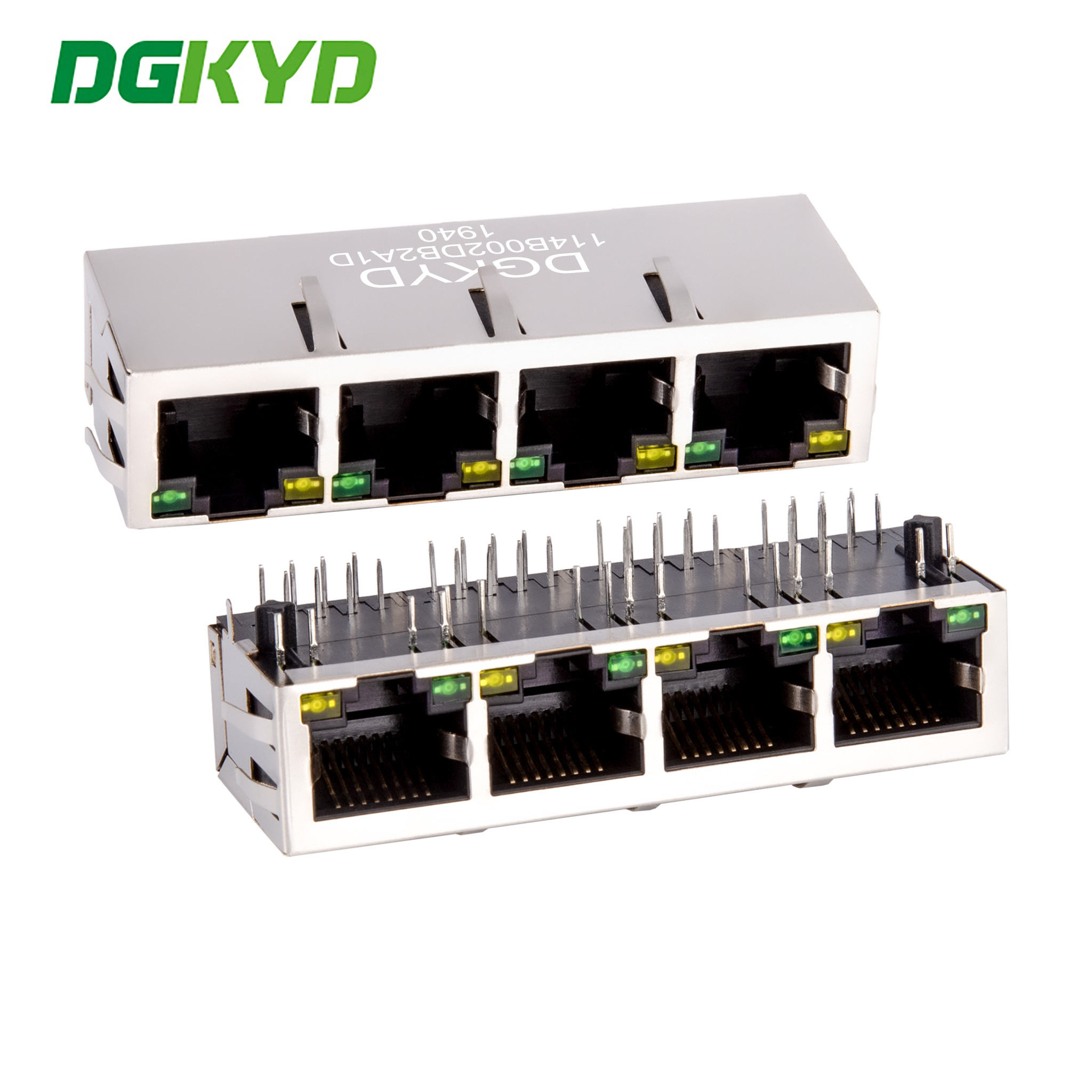

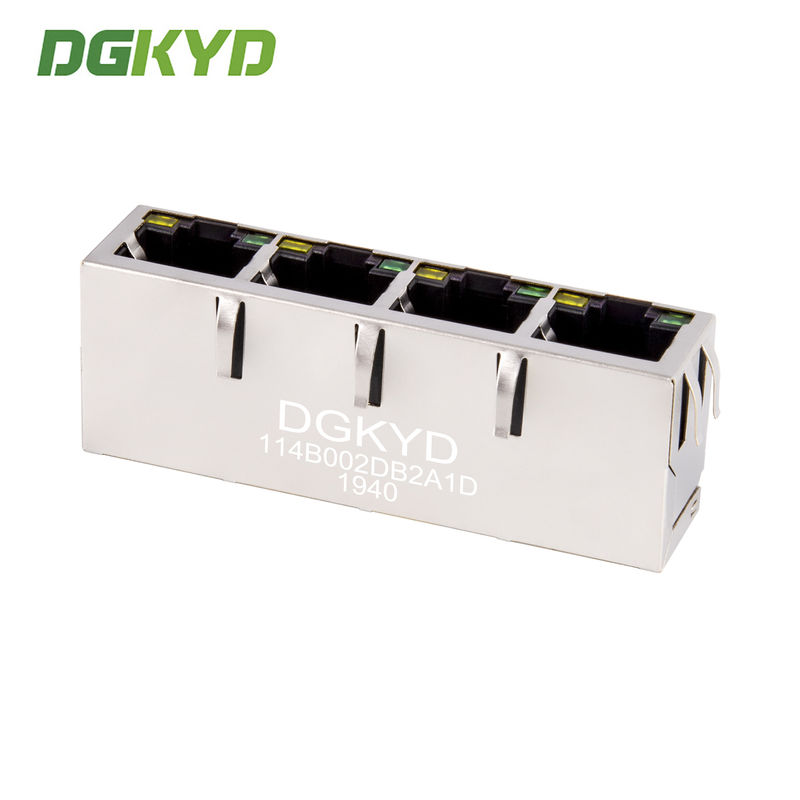

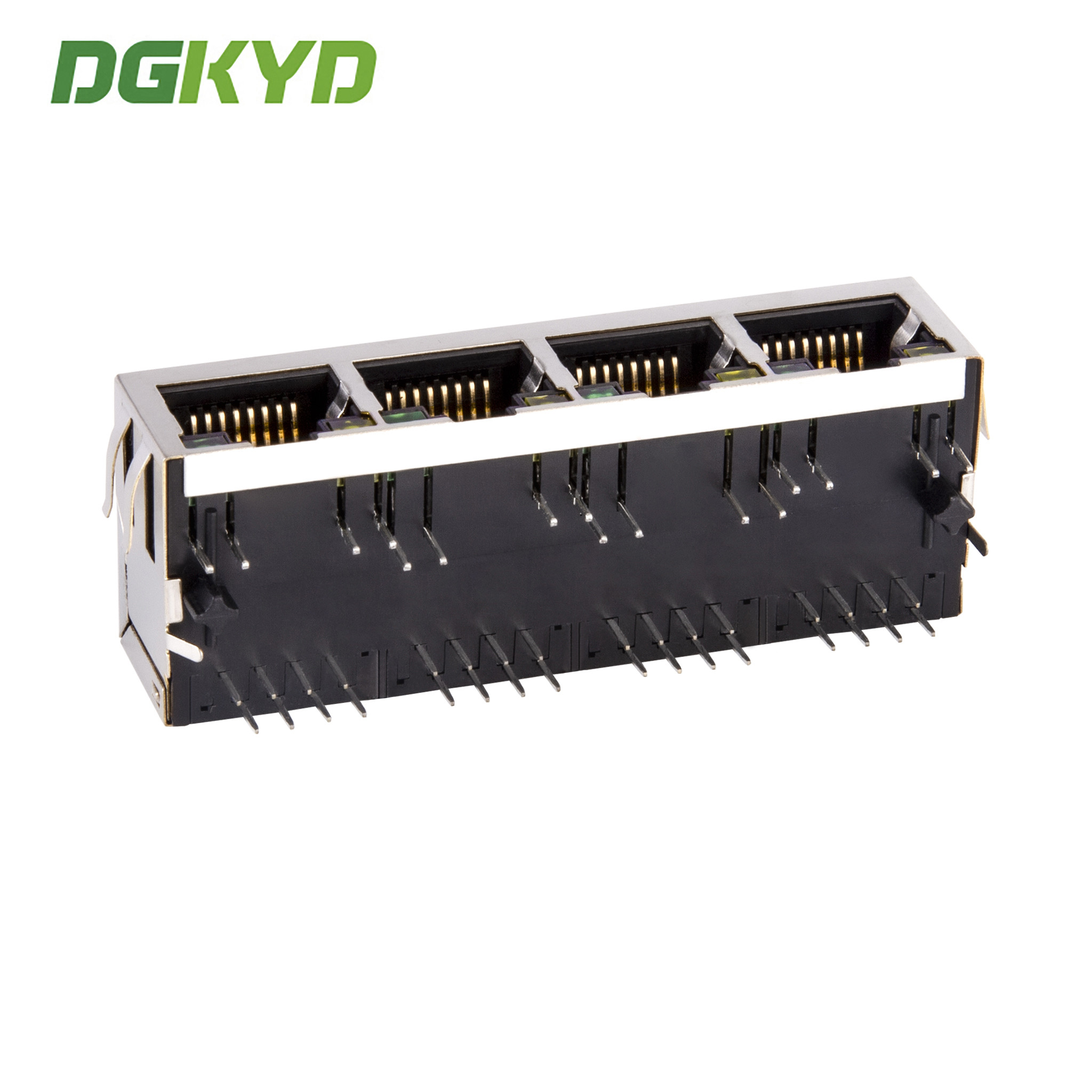

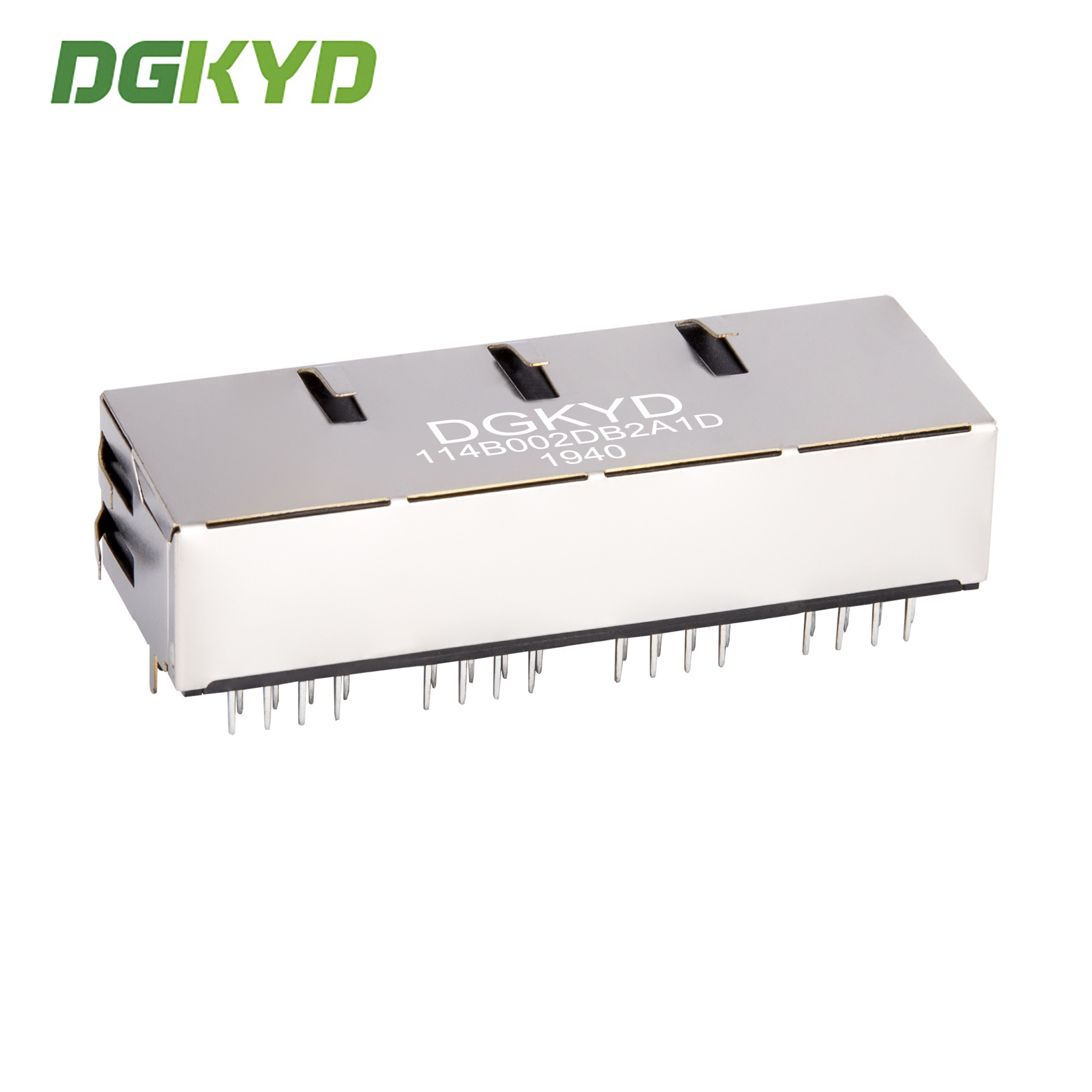

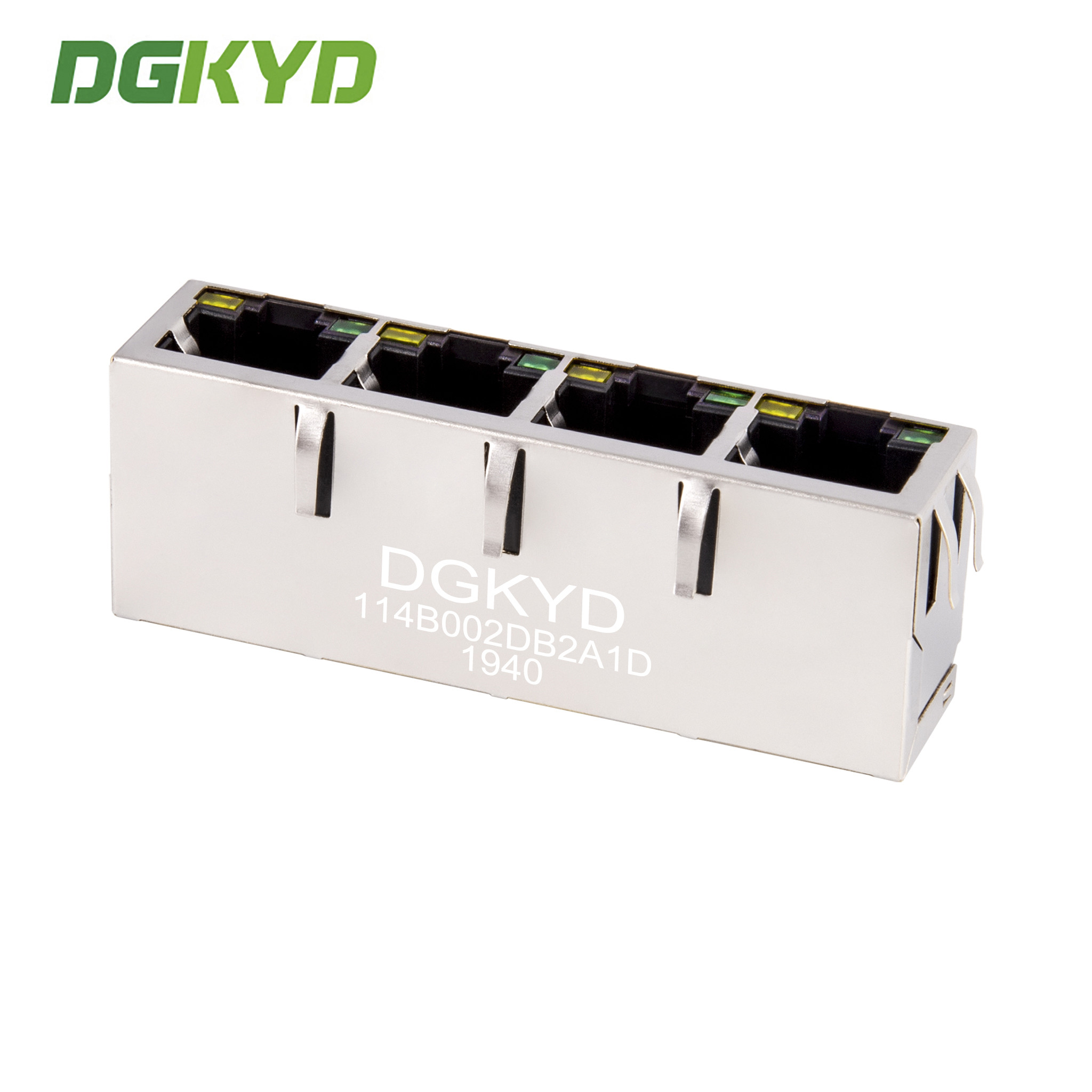

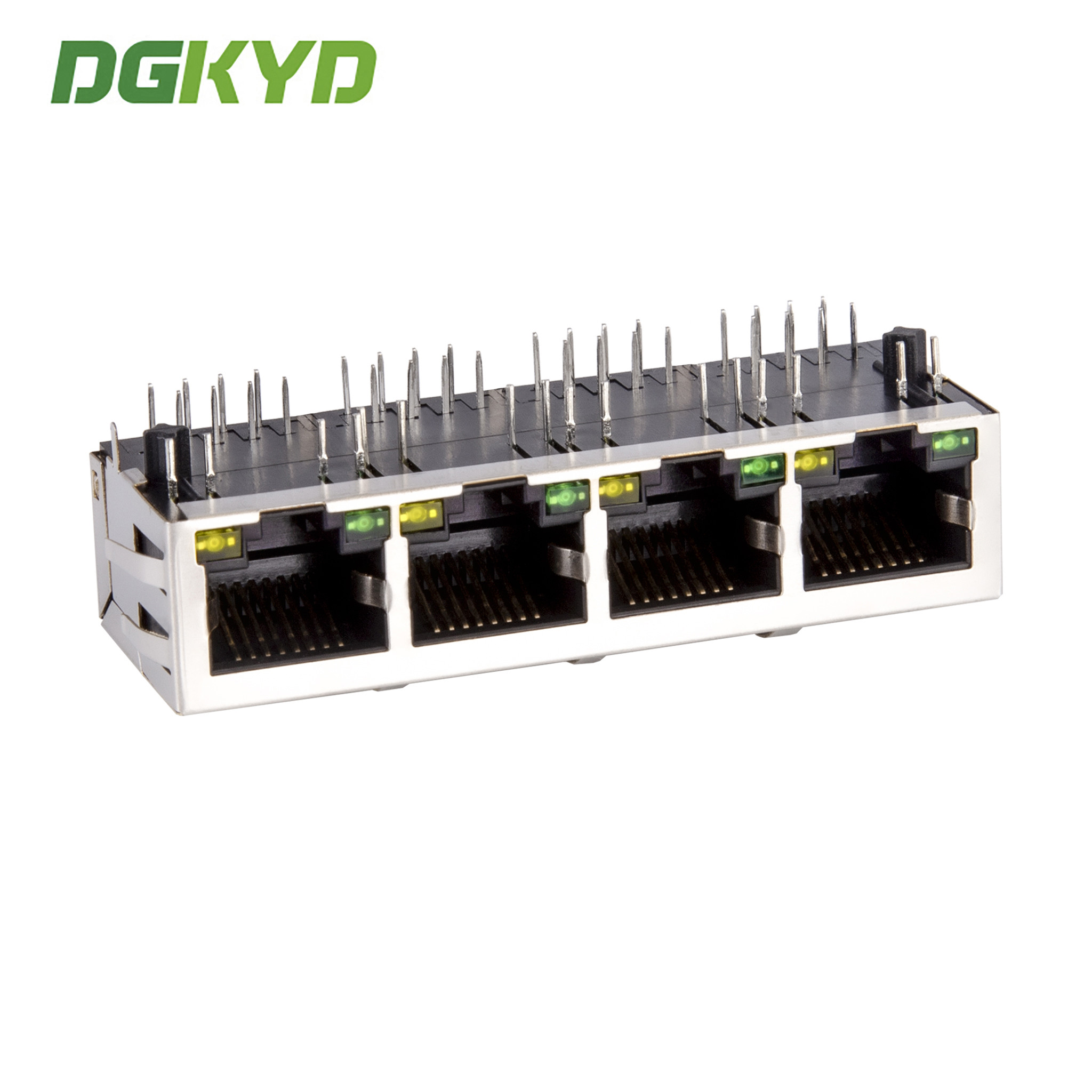

RJ45 connector 1X4 100Mbps Ethernet socket with light and shielded Ethernet interface DGKYD114B002DB2A1D

Product Specification Document

Part Number	DGKYD114B002DB2A1D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X4 Ports	Number of Positions	8
Jack Configuration	1X4	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

RJ45 Connector 1X4 100Mbps Ethernet Socket With Light And Shielded Ethernet Interface DGKYD114B002DB2A1D 0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
