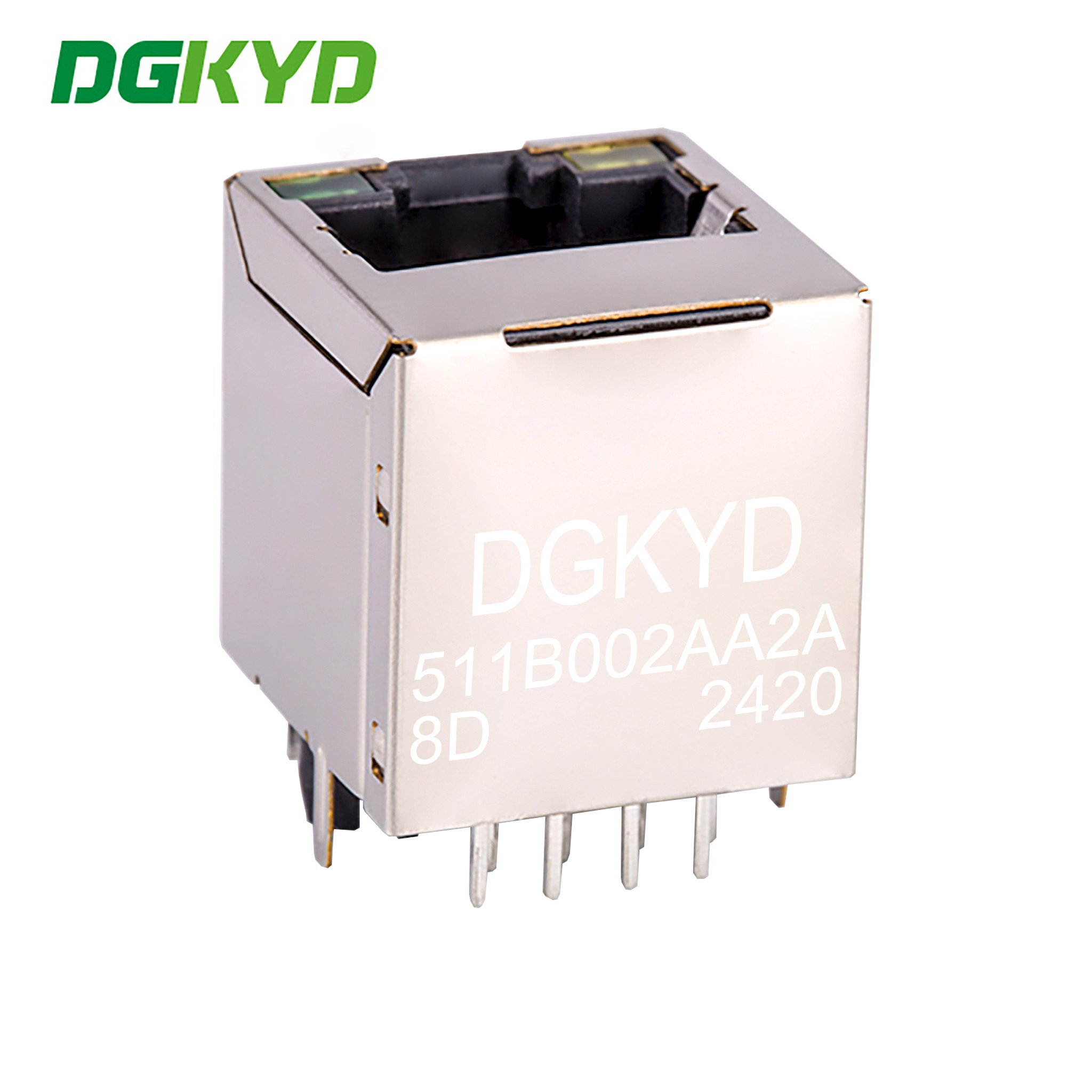

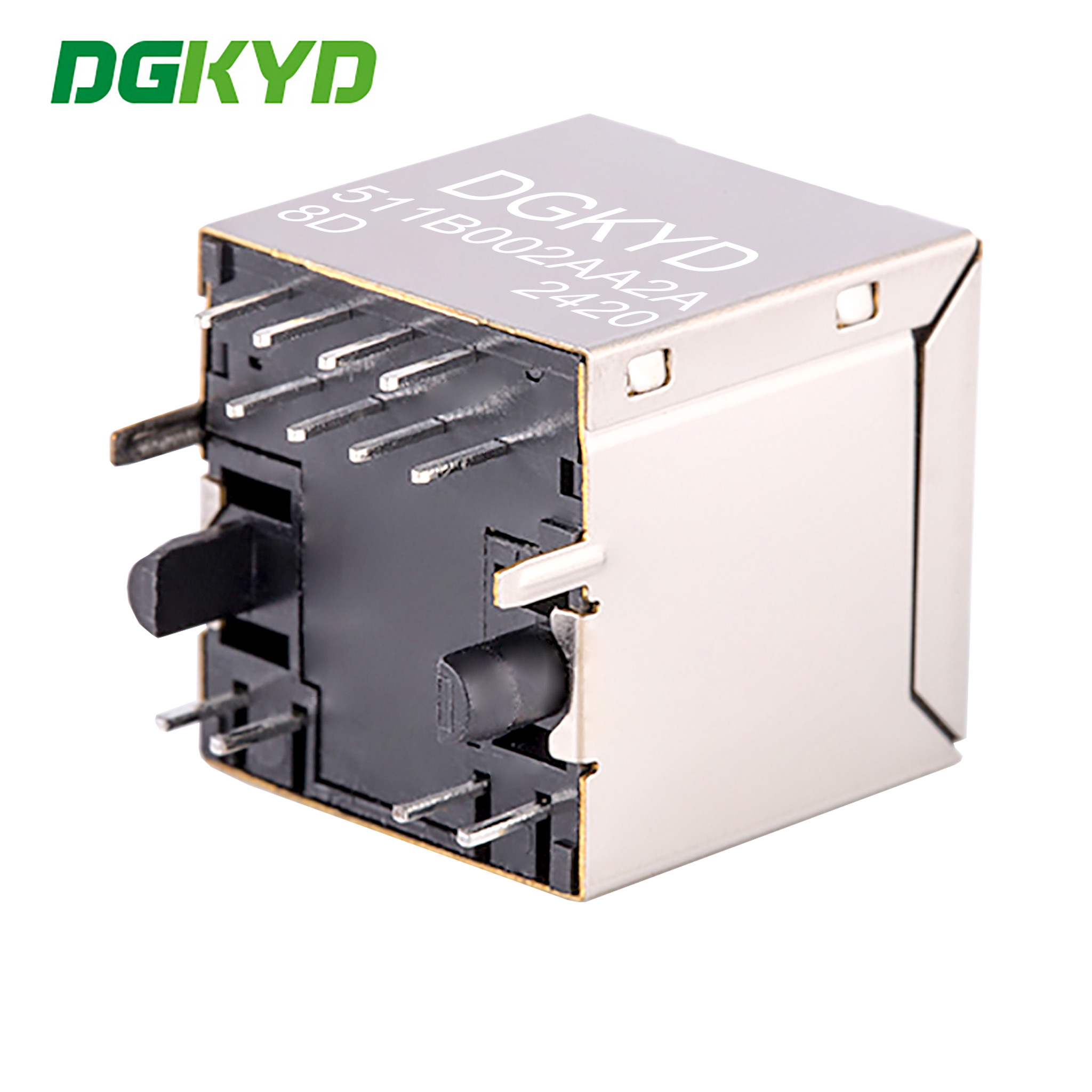

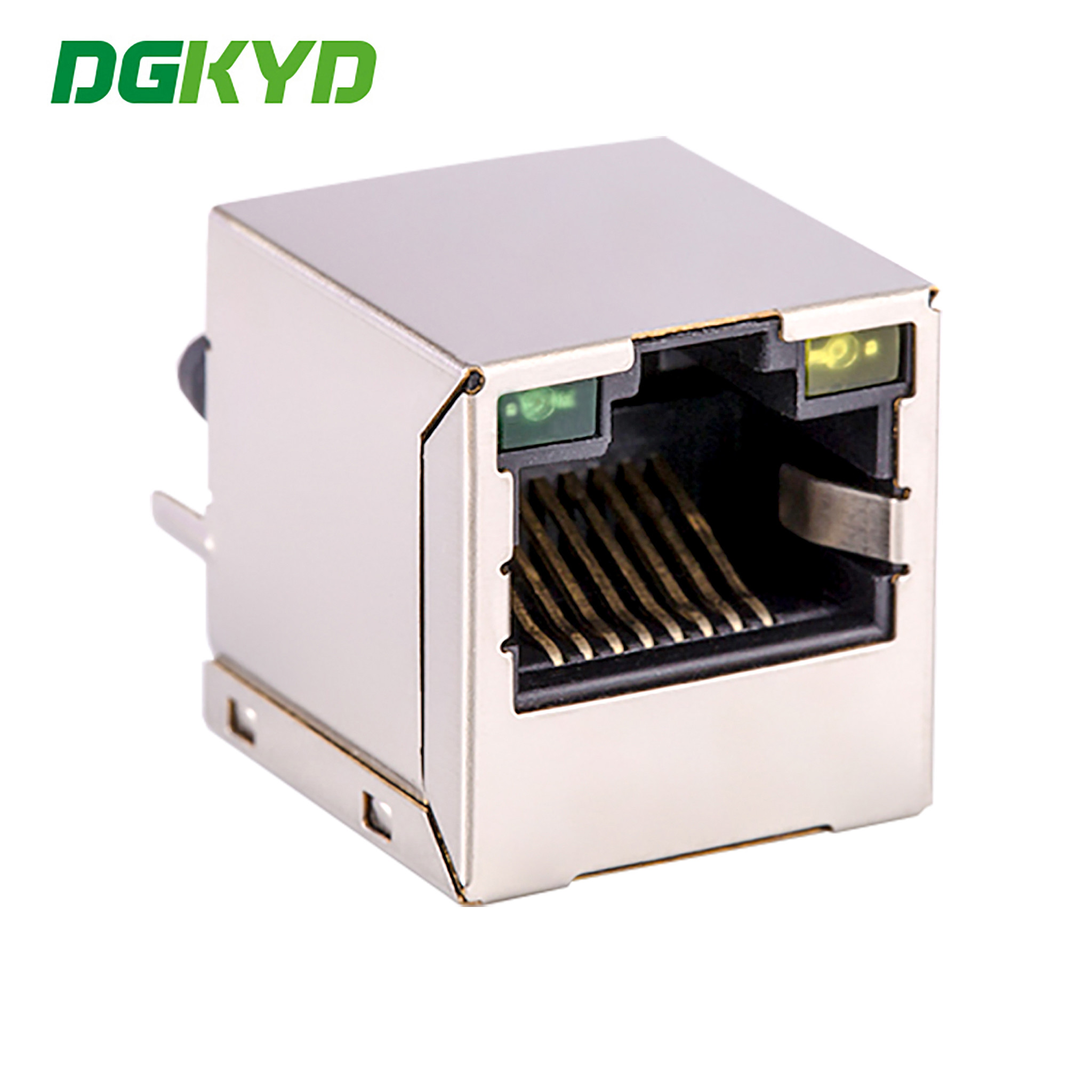

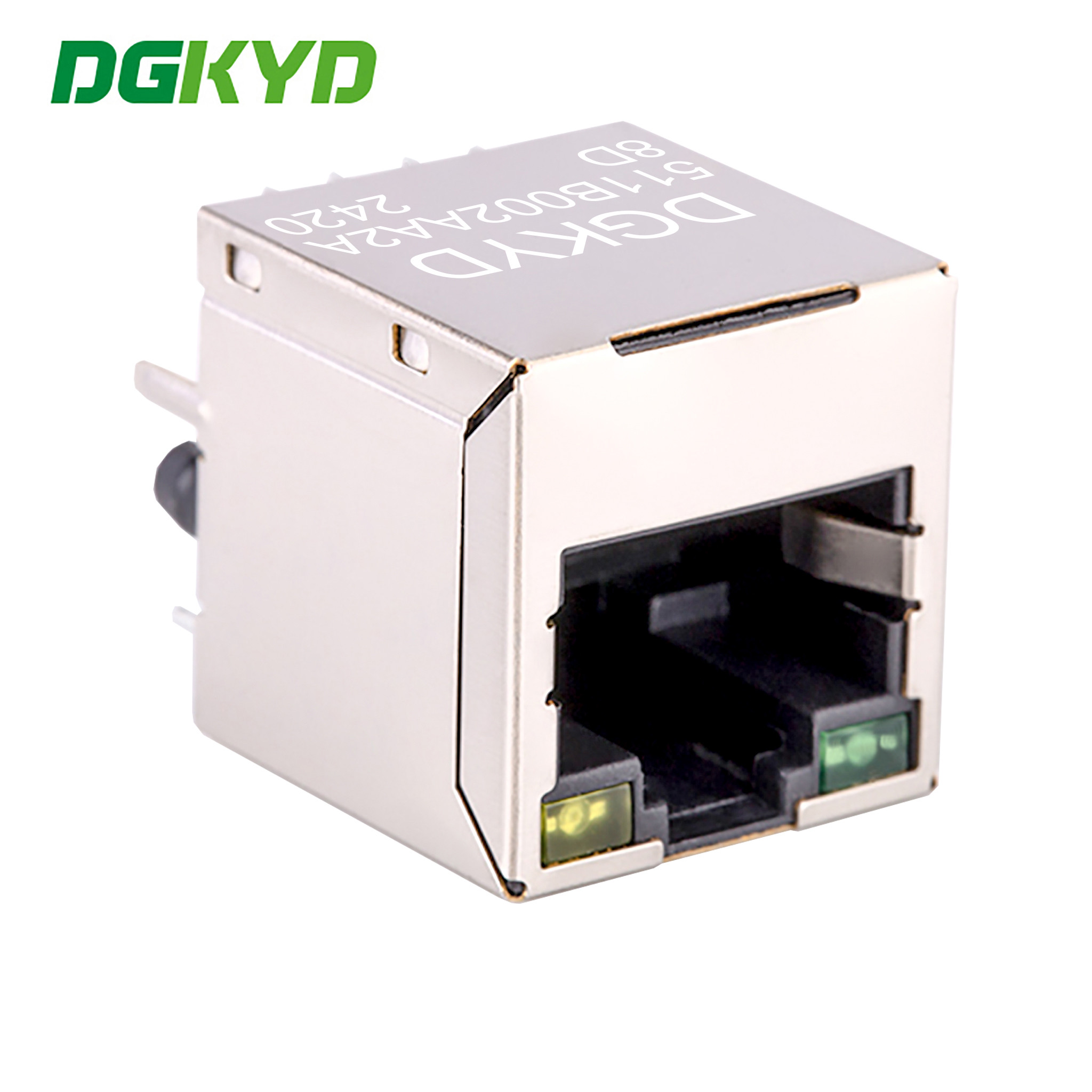

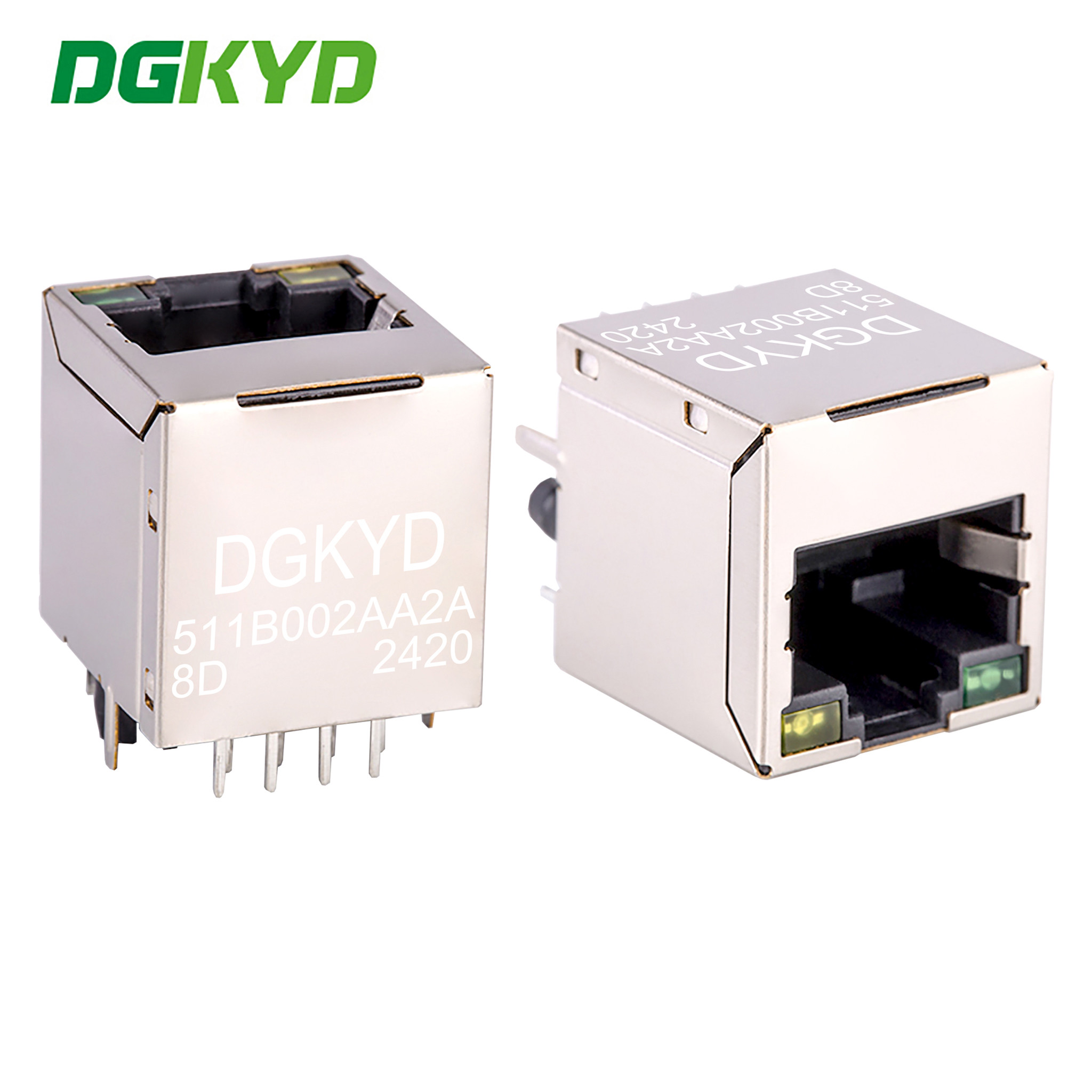

RJ45 Vertical Interface 180 Degree Network Connector 100MB Transformer DGKYD511B002AA2A8D

Ποσότητα παραγγελίας min :	1 κομμάτι	Τιμή :	Please contact us to get the latest price.
Συσκευασία λεπτομέρειες :	Τραπέζι σε κουτί	Χρόνος παράδοσης :	10 ημέρες
Όροι πληρωμής :	Τ/Τ, D/P, D/A, L/C, Western Union, MoneyGram	Δυνατότητα προσφοράς :	100 χιλιάδες τεμάχια την ημέρα

Τόπος καταγωγής:	DongGuan της Κίνας	Μάρκα:	DGKYD
Πιστοποίηση:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Αριθμό μοντέλου:	DGKYD511B002AA2A8D

Λεπτομερής ενημέρωση
Ειδικότητα:	Προστατευμένος λιμένας δικτύων RJ45	Εφαρμογή:	οπτικών ινών, κάμερα IP, dvr, dsl, modem, wifi κ.λπ
OEM/ODM:	- Ναι, ναι.	Τύπος:	Multi pin rj45 magjack
Φύλο:	δοχείο rj45	Ονομασία προϊόντος:	RJ45 ο μορφωματικός Jack
θερμοκρασία λειτουργίας:	-40°C~+85°C	Θέρμανση αποθήκευσης:	-40°C~+85°C
Χρυσή επένδυση στις καρφίτσες επαφών:	6U	Αριθμός πινών:	8
Αριθμός πυρήνων:	8
Επισημαίνω:	180 degree RJ45 network connector , RJ45 vertical interface network connector , 100MB RJ45 network connector

Περιγραφή προϊόντων

RJ45 vertical interface 180 degree network connector 100MB transformer DGKYD511B002AA2A8D

Product Specification Document

DGKYD511B002AA2A8D.pdf

Part Number	DGKYD511B002AA2A8D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Yes Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X1 Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
