RJ45 Quad Port Integrated Gigabit Transformer Network Connector Network Port Socket With Transformer For Ethernet Switc KRJ-401QGYENL

Ποσότητα παραγγελίας min :	1 κομμάτι	Τιμή :	Please contact us to get the latest price.
Συσκευασία λεπτομέρειες :	Τραπέζι σε κουτί	Χρόνος παράδοσης :	10 ημέρες
Όροι πληρωμής :	Τ/Τ, D/P, D/A, L/C, Western Union, MoneyGram	Δυνατότητα προσφοράς :	100 χιλιάδες τεμάχια την ημέρα

Τόπος καταγωγής:	DongGuan της Κίνας	Μάρκα:	DGKYD
Πιστοποίηση:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Αριθμό μοντέλου:	KRJ-401QGYENL

Λεπτομερής ενημέρωση
Ασπίδα RJ45:	- Ναι, ναι.	No.Port:	4 λιμένας
Ονομασία προϊόντος:	RJ45 με μετασχηματιστή	Τύπος:	RJ45 θηλυκό
Διαμονή:	Φαινολικό, PBT Μαύρο (UL94V-0)	Πλαστικός πυρήνας:	Συμπλήρωμα από γυάλινη ίνα PBT Μαύρο ((UL94V-0), ROHS
Θέρμανση αποθήκευσης:	-40°C~+85°C	Αριθμός βελονιών:	8P10C
Θερμοκρασία λειτουργίας:	-40 °C έως +85 °C	LED:	Πράσινο/Κίτρινο
Επισημαίνω:	Quad Port RJ45 Network Connector , Integrated Transformer RJ45 Network Connector , RJ45 Network Port Socket With Transformer

Περιγραφή προϊόντων

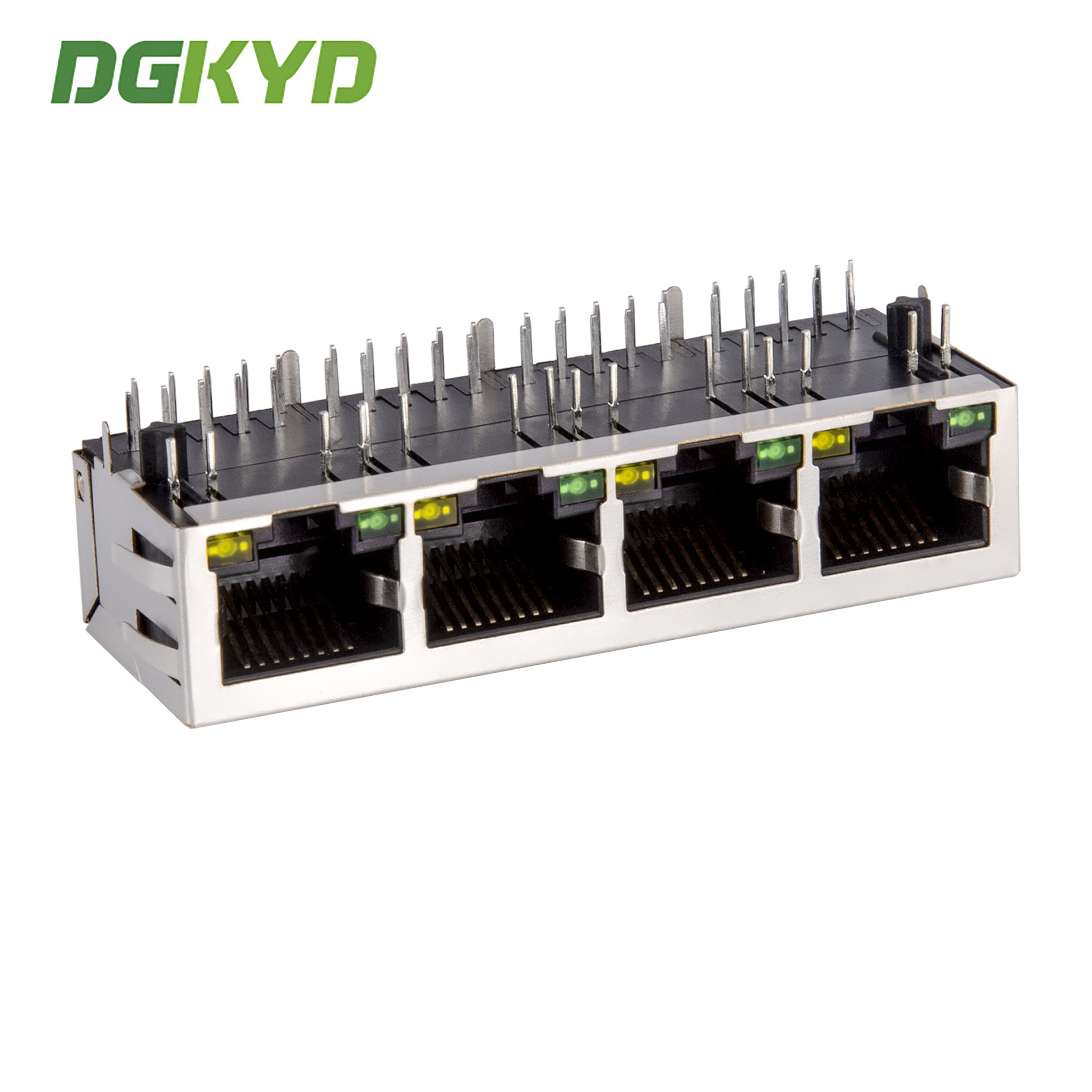

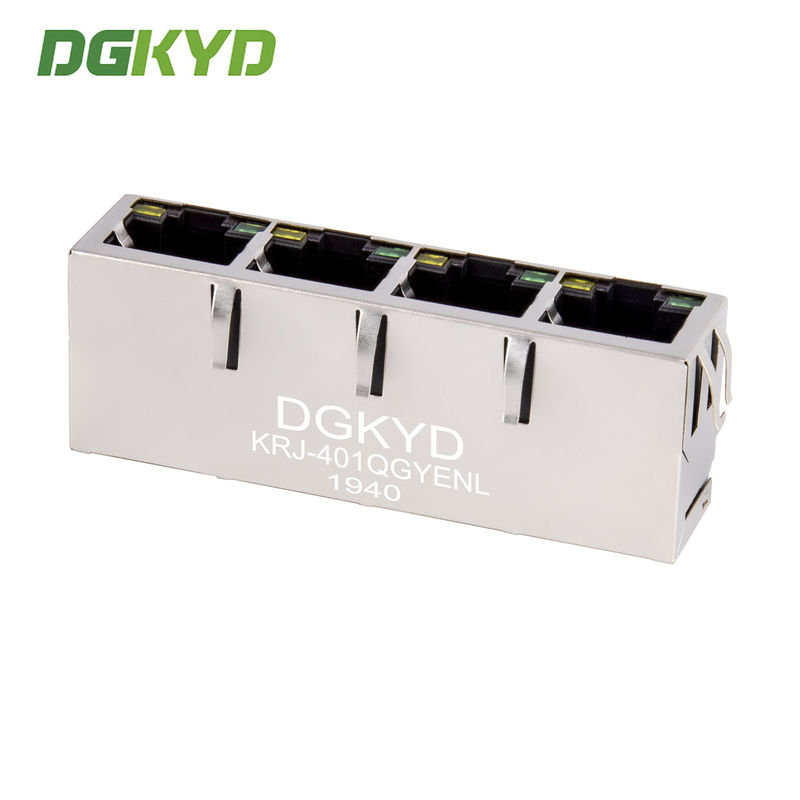

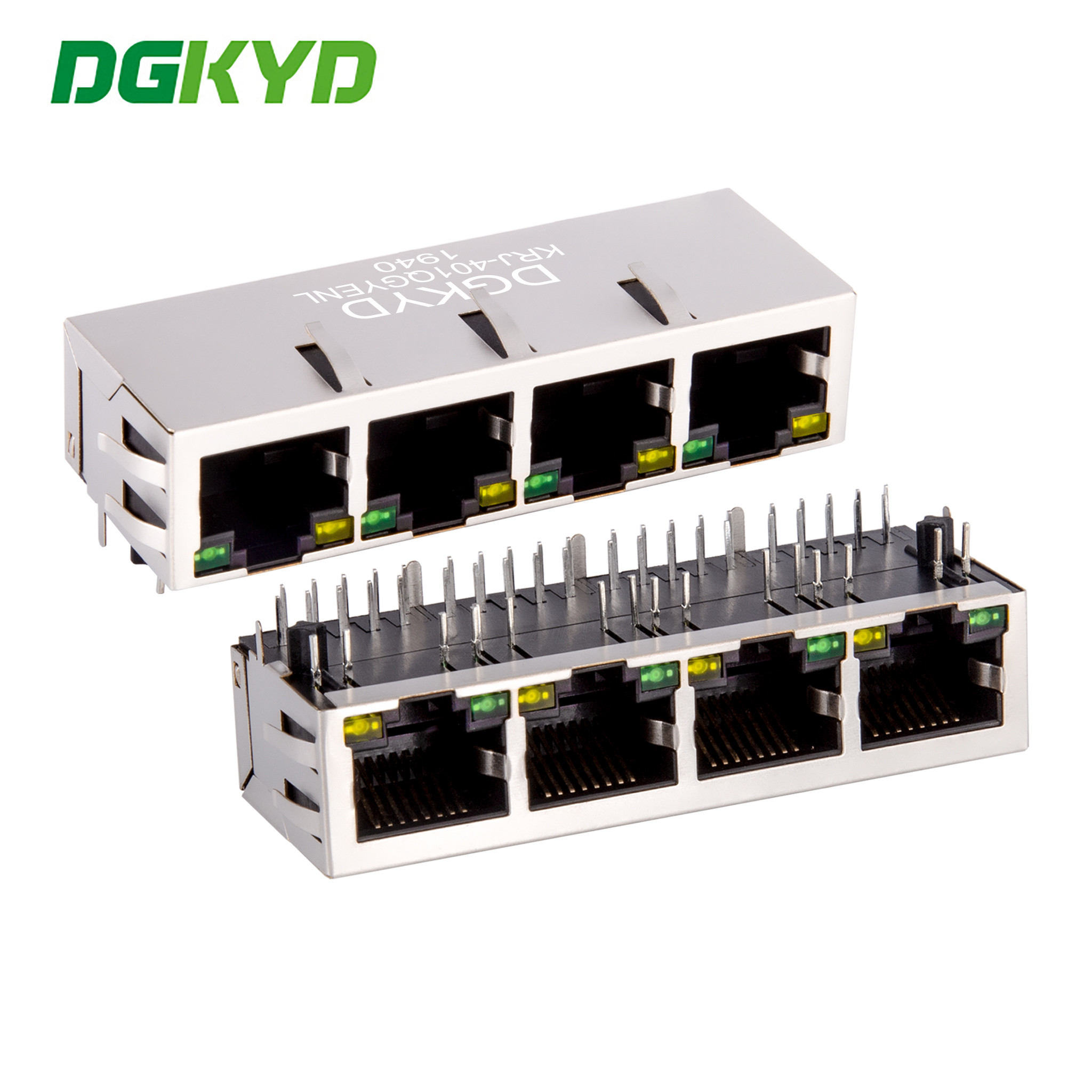

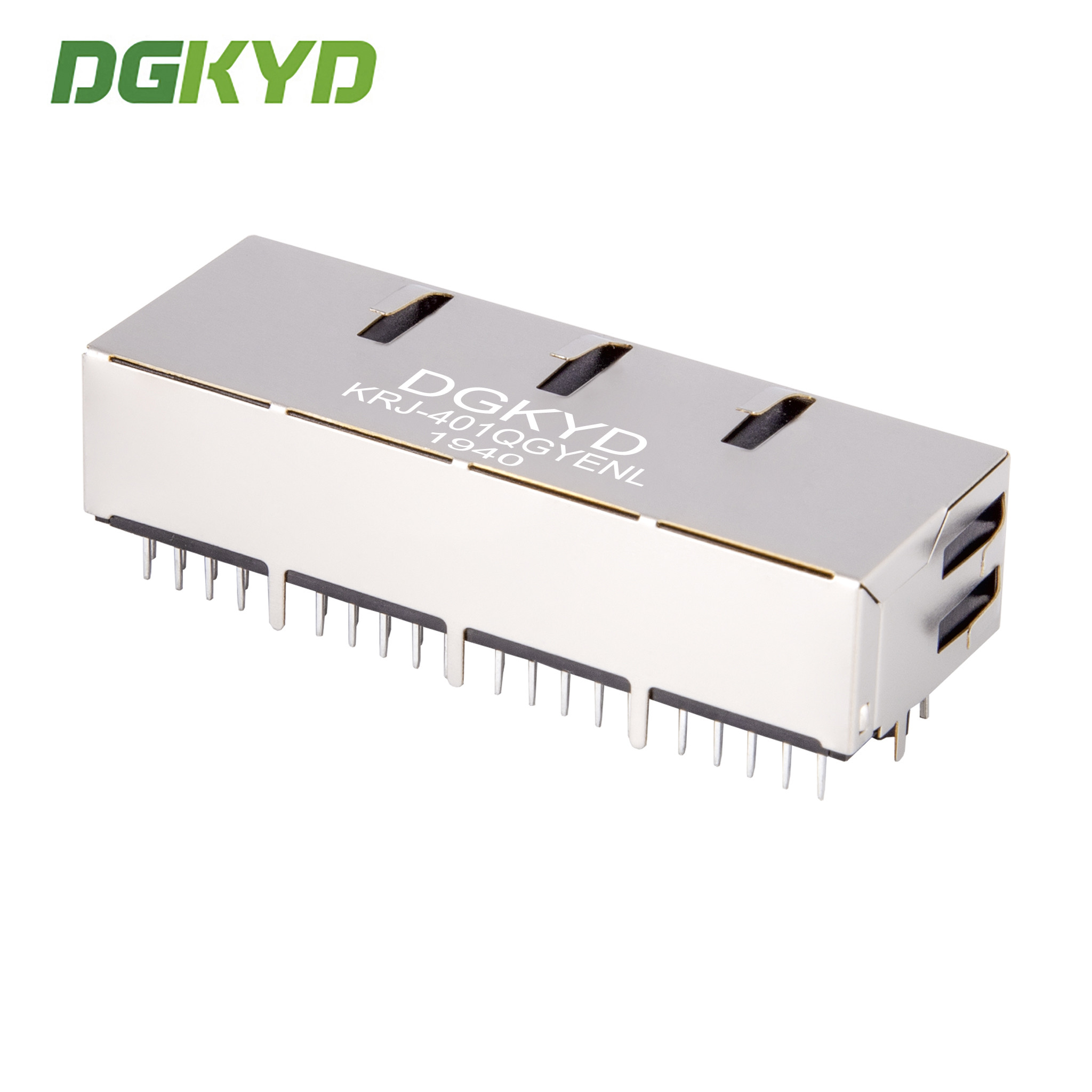

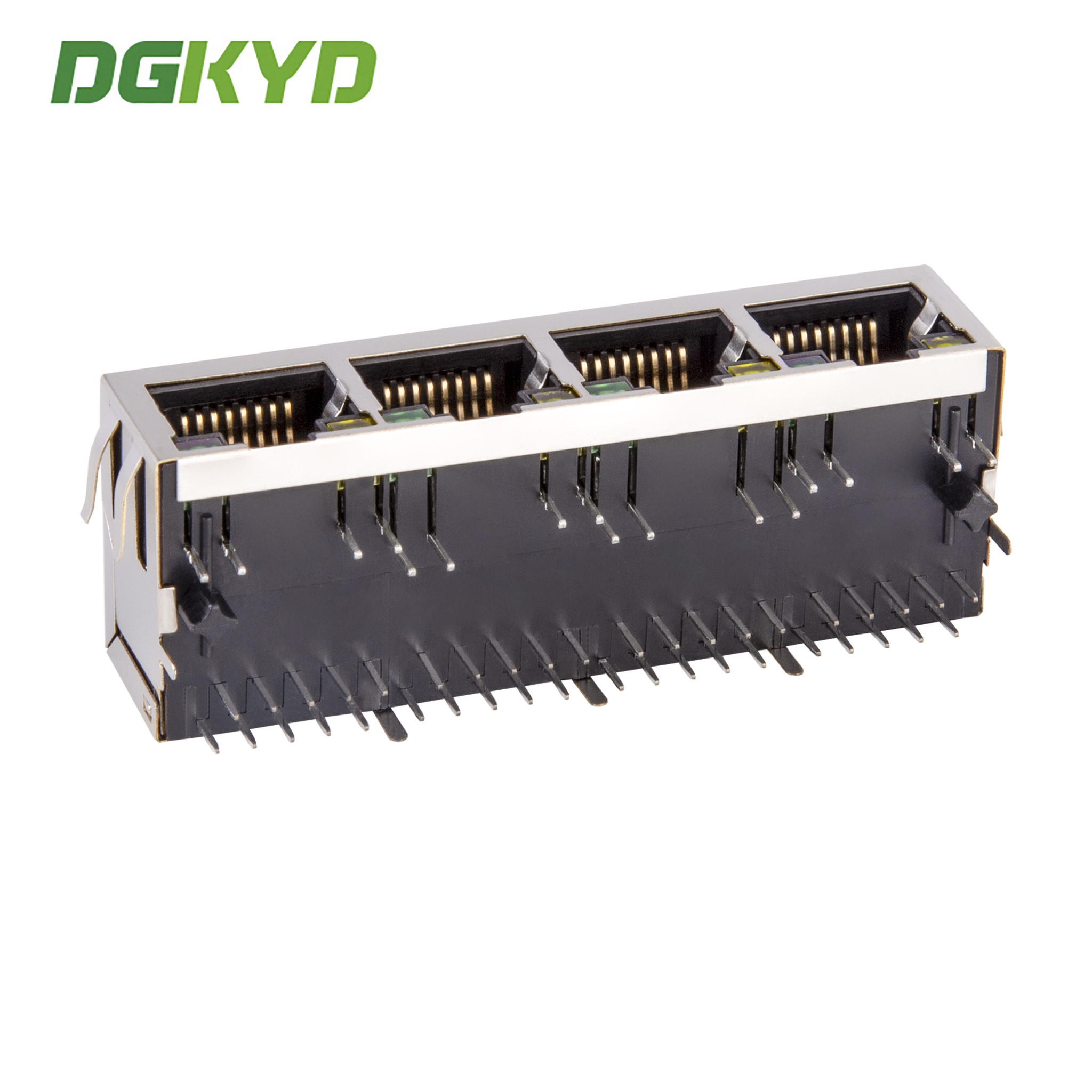

RJ45 quad port integrated gigabit transformer network connector network port socket With Transformer For Ethernet Switc KRJ-401QGYENL

Product Specification Document

Part Number	KRJ-401QGYENL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X4 Ports	Number of Positions	10
Jack Configuration	1X4	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
